Product Details:
|
| Data Rate: | 10G | Form-Factor: | SFP+ |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 10km |
| Temperature: | -5-85 | Weight: | 0.27g |
| Warranty: | 1 Years | Model: | FTLX1471D3BNL |
| Highlight: | ftlx1471d3bnl finisar optical transceiver,10g finisar optical transceiver |
||

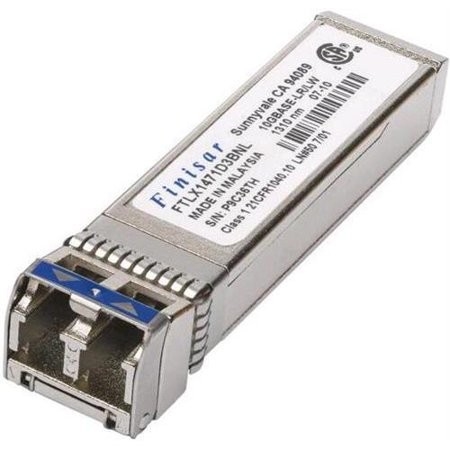

Finisar FTLX1471D3BNL Optical Transceiver 10G 1310nm 10km
Parameters
| Fiber Type |
10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -8.2-0.5 dBm |
| Rx Sensitivity | -12.6dBm |
| Extinction Ratio | 3.5 dbm |
| Power Consumption | 1W |
| Single Power Supply | 3.3 V |
Finisar’s Extended Temperature FTLX1471D3BNL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3ae 10GBASE-LR/LW3 and 10G Fibre Channel 1200-SM-LL-L4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725 . The FTLX1471D3BNL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC6 , and Finisar Application Note AN-20387 .
PRODUCT FEATURES OF FTLX1471D3BNL
APPLICATIONS OF FTLX1471D3BNL
FAQ OF FTLX1471D3BNL
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
