Product Details:
|
| Form Factor: | 1U Chassis | Fibre Channel Ports: | 8-, 16-, And 24-port Configurations 8-port Increments Through Ports On Demand Licenses |
|---|---|---|---|
| Aggregate Bandwidth: | 192 Gbps: 24 Ports × 8 Gbit/sec (data Rate) | Performance: | Auto-sensing Of 1, 2, 4, And 8 Gbps Port |
| AC Input: | 100-240 VAC, 2.0A, 47-63 Hz | Scalability: | Full Fabric Architecture With 239 Switches Maximum |
| Weight: | 7kg | ||
| Highlight: | BR-310-0008 Brocade 300 San Switch,BR-310-0008 Brocade 300 San Switch,BR-310-0008 8G brocade fabric switch |
||

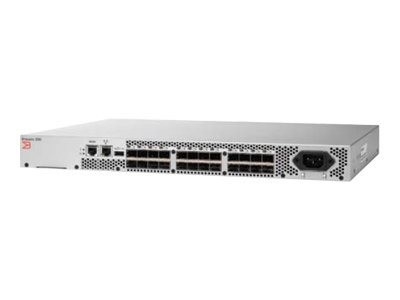

BR-310-0008 Brocade 300 SAN Fabric Switch For 8G Fiber Channel Network
Brocade 300 FC Storage Area Network Switch up to 24 ports
| Main features | Systems Architecture |
| Power consumption |
Nominal 48 watts; maximum 57 watts with 24 ports at 8 Gbps
|
| Input voltage |
85 to 264 VAC nominal
|
|
Power supply
|
Single, fixed power supply
|
|
Management access
|
10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Brocade DCFM,EFCM, and Fabric Manager
|
| ISL Trunking |
Frame-based trunking with up to eight 8 Gbps ports per ISL trunk with optional license;up to 64 Gbps per ISL trunk (8 ports × 8 Gbps [data rate])
Exchange-based load balancing across ISLs with DPS included in Fabric OS
|
| USB |
1 USB port for firmware download, supportsave, and configuration upload/download
|
| Vibration |
Operating: 0.5 g sine, 0.4 grms random, 5 to 500Hz Non-operating and storage: 2.0 g sine, 1.1 grms random, 5 to 500 Hz
|
The BR-310-0008 provides the following features:
FAQ
Q1. What transceiver module can be used on this BR-310-0008 switch?
A1: 57-0000080-01 XBR-000153 XBR-000174 etc 2G 4G 8G 16G whole series SFP optical modules can be used;
Q2. What's the warranty time of your Brocade switch
A2: 1 year for brand switch if any quality problem;
Q3. what is the data traffic types for this switch?
A3: Fabric switches supporting unicast, multicast (255 groups) and broadcast
