Single Mode Multi-Rate Hot-Pluggable SFP Transceiver 80Km Transmit Module







Optical Module FTLX1871M3BCL Specification





Application	10Gb/s
Wavelength	1550 nm
Standard Temperture	-5/70°C
Distance	80Km
Form Factor	SFP
Connector	LC
DDM	Yes
Optical Extinction Ratio	9dB





PRODUCT FEATURES





Hot-pluggable SFP+ footprint



Supports 8.5 and 9.95 to 11.3 Gb/s



80km link length



1600ps/nm chromatic dispersion tolerance



-5/70°C case temperature range



 Internal transmitter/receiver CDR



 1.5W/1.7W power consumption options



 Cooled 1550nm EML laser



 Limiting electrical interface receiver



 Duplex LC connector



 Built-in digital diagnostic functions



 RoHS-6 compliant (lead-free)





 APPLICATIONS





 SONET OC-192, SDH STM-64 and OTN G.959.1 P1L1-2D2



 10G Ethernet ZR and 10G Fibre Channel



 OTN G.709 OTU1e/2/2e FEC bit rates



 8.5Gb/s Fibre Channel

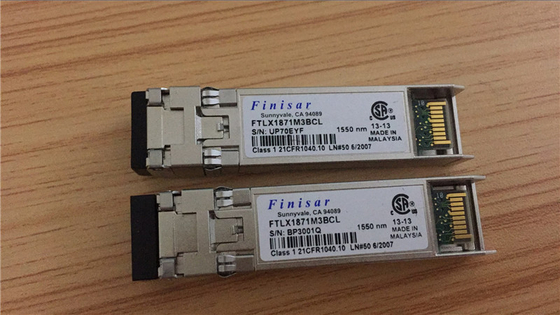

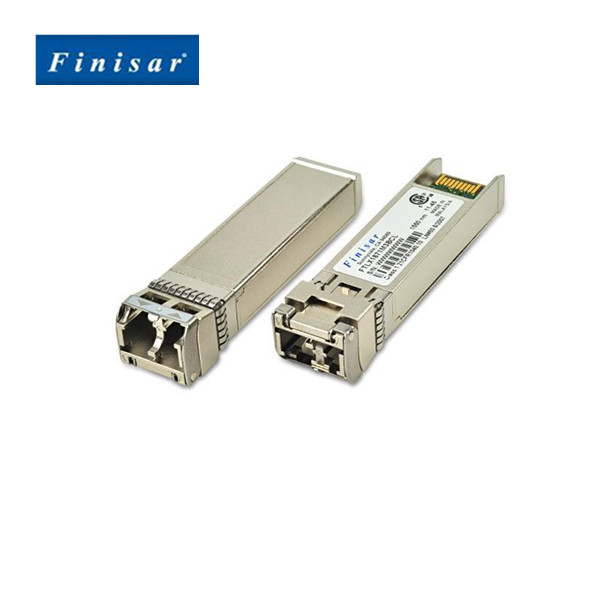

Finisar’s FTLX1871M3BCL transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-



Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-84311 , SFF-84322 and G.959.1



P1L1- 2D2, and support SONET OC-192, SDH STM-64, 10G Ethernet ZR and 10G Fibre Channel. Finisar’s FTLX1871M3BCL



transceivers use internal clock and data recovery (CDR) IC’s for the transmitter and the receiver. This guarantees compliance



with the SONET/SDH jitter requirements and it can be used to set the electrical interface to be XFI-compliant. Digital



diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84723 . The optical transceiver is compliant



per the RoHS Directive 2011/65/EU4 . See Finisar Application Note AN-2038 for more details5 .
