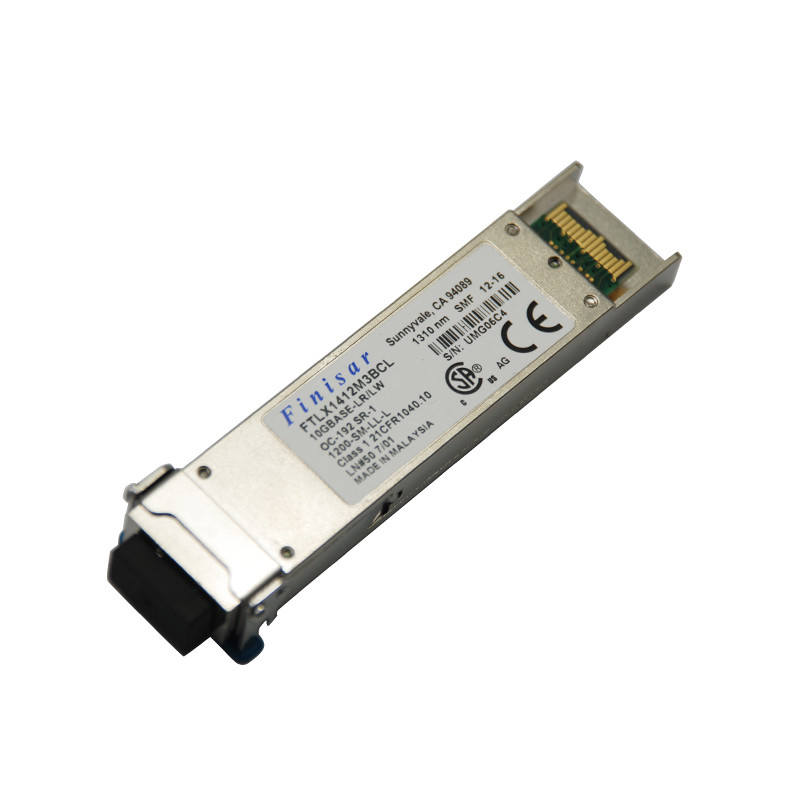

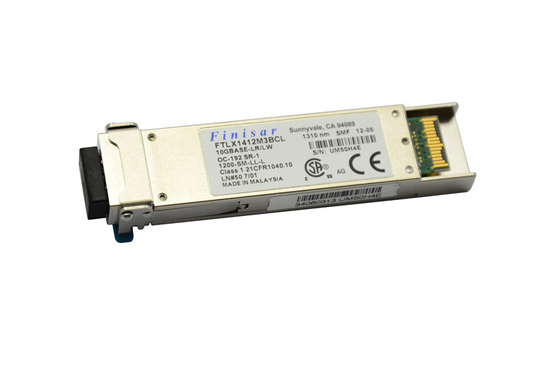

10km XFP Optical Transceiver 10G 1310nm Modules For 10G Ethernet



Optical Module FTLX1412M3BCL Specification





Application	10Gb/s
Wavelength	1310 nm
Standard Temperture	-5°C to 75°C
Distance	10Km
Form Factor	XFP
Power dissipation	<2.0W
DDM	Yes
Optical Extinction Ratio	6dB





PRODUCT FEATURES





• Supports 9.95Gb/s to 11.3Gb/s bit rates



• Power dissipation <2.0W • Commercial temperature range: -5°C to 75°C



• RoHS-6 Compliant (lead-free)



• Hot-pluggable XFP footprint



• Single Power supply: 3.3V



• Maximum link length of 10km



• Uncooled 1310nm DFB laser



• No Reference Clock required



• Built-in digital diagnostic functions



• Supports 8.5GFC in CDR-bypass mode





APPLICATIONS



• SONET OC-192 SR-1 SDH STM I-64.1



• 10GBASE-LR/LW 10G Ethernet



• 1200-SM-LL-L 10G Fibre Channel



• 10GBASE-LR/LW with FEC



• 800-SM-LC-L 8.5G Fibre Channel







Finisar’s FTLX1412M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source



Agreement (MSA) Specification1 . They comply with SONET OC-192 SR-1, SDH STM I-64.1, 10-Gigabit Ethernet



10GBASELR/LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L. In CDR-bypass mode, the Transceiver is compliant to



8.5G Fibre Channel 800-SM-LC-l. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the



XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC3 , and Finisar Application Note AN-20384
