Product Details:
|
| Data Rate: | 40Gb/s | Form-Factor: | QSFP |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 1.4km |
| Temperature: | 0°C To 70°C | Connector: | MTP/MPO |
| Single Power Supply: | 3.3V | DDM: | Yes |
| Highlight: | TR-IQ13C-N00 Original SFP Module,Original SFP Module 40Gb/S QSFP+,QSFP+ IR4 Parallel Single Mode |
||

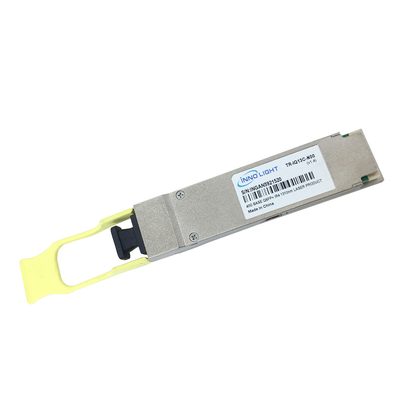

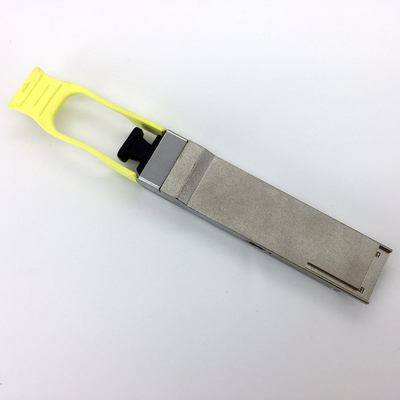

40Gb/s QSFP+ IR4 Parallel Single Mode Optical Transceiver Module TR-IQ13C-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 year |
| Tx power | -5.5 to +1.5dBm |
| Rx sensitivity |
-11.5 to +2.5 dBm |
| Extinction Ratio | 3.5 dB |
| Power Consumption | 3.5W |
| Applications | 40G Ethernet |
TR-IQ13C-N00 optical mudule Features
APPLICATIONS
TR-IQ13C-N00 description
This product is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module.
It provides increased port density and total system cost savings.
The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on 1.4km of single mode fiber.
A single +3.3V power supply is required to power up the module. Both power supply pins VccTx and VccRx are internally connected and should be applied concurrently.
Per MSA the module offers 7 low speed hardware control pins (including the 2-wire serial interface): ModSelL, SCL, SDA, ResetL, LPMode, ModPrsL and IntL.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
