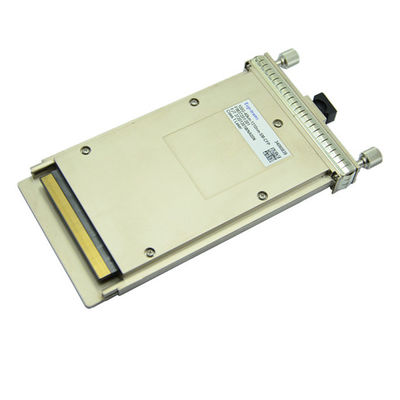

TCFP-100G-SR10 850NM 300M MPO 100GBASE-SR10 100G CFP Transceiver

TCFP-100G-SR10 850NM 300M MPO 100GBASE-SR10 100G CFP Transceiver

100G CFP Gigabit Ethernet Optical Fiber Switch

The CFP optical transceiver module are a high performance, low power consumption, short reachinterconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP MSA and IEEE P802.3ba 100GBASE-SR10. Topstar CFP SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel.

Parameters of TCFP-100G-SR10

PRODUCT FEATURES of TCFP-100G-SR10

• Compliant to CFP Hardware Specification Version 1.0
• Compliant to CFP MSA Management Interface Specification Version 2.2
• Compliant to the IEEE 802.3ba(100GBASE-SR10)
• Transmission data rate up to 11.18Gbit/s per channel
• Up to 300m on OM3 and 400m on OM4 MMF
• Power class 1 (<8W max)
• OTU4 compatible
• 10 channels 850nm VCSEL array transmitter
• 0 channels PIN photo detector array receiver
• MDIO digital diagnostic interface and control capabilities.
• TX input and RX output CDR retiming
• Hot pluggable electrical interface
• Operating case temperature:0°C~ +70°C
• Single 3.3V power supply
• RoHS 6 compliant(lead free)
• Utilizes a standard 24/20 lane optical fiber with MPO connector

APPLICATIONS of TCFP-100G-SR10

• 100GBE interconnects
• High-speed core router connections&Datacom/Telecom switch
• Data aggregation and backplane applications
• Proprietary protocol and density application

FAQ of TCFP-100G-SR10

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.

Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.

Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.

Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
