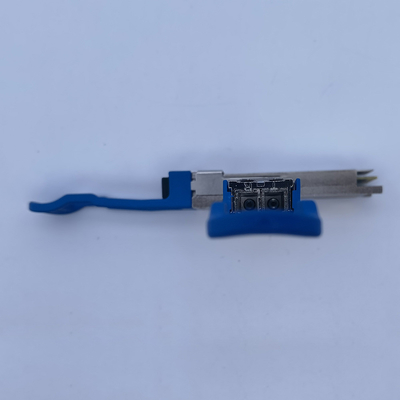

Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers

Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers
Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers
Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers

Large Image :  Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers

Product Details:
Place of Origin: Guangdong, China
Brand Name: Top-Trans
Certification: ISO9001, ROHS, CE, FCC
Model Number: TQSFP-100G-FR1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: QSFP Blister box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal,
Supply Ability: 3000pcs per month

Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers

Description
Data Rate: 100G Form-Factor: QSFP28
Center Wavelength: 1310NM Transimission Distance: 2KM SMF
OEM/ODM: Supported Temperature: 0°C~70°C Commercial
Weight: 60 Grams Warranty: 3 Years
Highlight:

Arista QSFP28 100G PAM4

,

2KM SMF QSFP-100G-FR Transceivers

,

Arista QSFP28 QSFP-100G-FR Transceivers

Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers



Through network virtualization, more enterprise places the cloud native application on the servers of Cloud Cluster for better system scalability, less cost investment and simpler maintenance. The cloud distributed services drives the need for more data movement across the server clusters and generates explosive east-west traffic. To facilitate Cloud distribution, data center network simplifies the 3 Tiers network into the Spine-Leaf network and evolves the bandwidth from 10G into 25G/100G even 400GBASE at the corner.



The next generation 400GBASE network satisfies the robust network demand by



  • Big data analysis and AI machine learning

  • The multi-platform servers of high performance and more I/O CPU/GPUs

  • The network acceleration by DPUs & Smart NIC for high density HPC

  • The latest new storage network architecture based on NVMe Storage media

  • Critical power consumption and simplifed architecture

To immegrate from 100GBASE into 400GBASE, the QSFP28 100G PAM4 DR1/FR1 Single Lambda optics is designed to replace the previous 100G AOC/SR4/PSM4 optic in the layer of TOR to Leaf. QSFP28 100G PAM4 DR1/FR1 offers 100GBASE high bandwidth for server access and the parallel uplinks with 400GBASE PAM4 DR4/FR4 using the MTP to 4 LC breakout cable.



The Arista compatible QSFP28 100G FR1 Transceivers can be plugged into any Arista 100G QSFP port and interoperate with Arista 7388X5 & 7368x4 leaf/spine data center switch platform.The electrical connector interface is 4 * 25G NRZ, the same as all existing legacy QSFP28 100G modules. But, not like 100G CWDM4, mux/demux 4 * 25G NRZ optical signal into one fiber, the QSFP28 100G FR1 Transceivers uses a gearbox chip to convert the 4 * 25G NRZ electrical signals into a 1 * 100G PAM4 optical signal and couple into the single wavelength laser (or "lambda") for transmission. Due to different optical modulation, QSFP28 100G FR1 modules will not interoperate with legacy 100G CWDM4 lite module.



The Top-Trans QSFP28 100G PAM4 FR1 optics uses single lambda signal of 50GBaud on 1310nm center wavelength and support the link lengths of up to 2km via G.652 single mode fiber. The Top-Trans QSFP28 100G PAM4 FR1 optics uses PAM4 optical modulation and FEC and is fully compliant with MSA QSFP28 100GBASE-FR.



Key Features



  • QSFP28 MSA Compliant

  • Support 53.125Gbps Baud RATE

  • 100G Lambda 100GBASE-FR

  • Up to 2km transmission on single mode fiber (SMF) with FEC

  • Operating case temperature: 0 - 70 ℃

  • PAM4 Modulation, 4x25G PAM4 electrical signal to 1x100G PAM4 Laser

  • Single +3.3V power supply, Maximum power consumption 4.5W

  • Operating case temperature: 0~70C

  • RoHS compliant

  • Interconnect with 400GBASE-FR4 PAM4 Optics via MTP/MPO Breakout Cable

Application



  • 100GBASE-FR Ethernet

  • 400GBASE-FR4 to 4 parallel 100GBASE-FR

Compatible platform



Arista 7050X3, 7050X4, 7358X4, 7060X, 7260X, 7130, 7170, 7280R, 7280R3, 7300X, 7388X5, 7368X4, 7500R, 7500R3, 7800R3



Parameters

Arista QSFP28 100G PAM4 Single Lambda 2KM SMF QSFP-100G-FR Transceivers 0



Data Speed

103.125Gbps

Center Wavelength

1310

Fiber Type

Singlemode

Transmission

2KM SMF

Connector

LC Duplex

Lasers

EML + PIN

Tx power

-2.4 - 4 dBm

Rx sensitivity

-6.4 dBm

Extinction Ratio

3.5 dB

Power Consumption

< 4.5 W

Single Power Supply

3.3 v



FAQ



  • We need port split from 400G to 4x100G What you can provide?

For 400G to 4 * 100G, we offer the breakout fiber link length for DR-500M, FR-2KM

QSFPDD-400G-DR4 with 4 * QSFP28-100G-DR1

QSFPDD-400G-FR4 with 4 * QSFP28-100G-FR1

Via 8 cores MTP/MPO to 4 of 2 cores LC Duplex Breakout Cable



  • Can I use your QSFP28 module on Arista 7170-32C switches?


Yes, our TQSFP28-100G-FR1 is fully compatible with Arista QSFP-100G-FR

100% guarantee interoperate with the 100G QSFP28 ports of Arista switches



  • Can your optics interoperate with QSFP28 CWDM4?

No, their optical modulation are different, when CWDM4 uses 4 * 25G NRZ but this FR1 uses 1 * 100G PAM4



  • What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

Our optics is produced using fresh new components through the strict QC control over parameter and performance test, on the error detector and eye diagram. The qualification ratio is over 99.9%

If any quality defects happen within the warranty, we will arrange the replace/repair service immediately



  • Do you sell other type of 100G QSFP28 Optics?

Yes, we can offer QSFP28 100G SR4, PSM4, LR4, PLR4, CWDM4, CWDM4-Lite, ER4L, ER4, ZR4 etc
