Product Details:
|

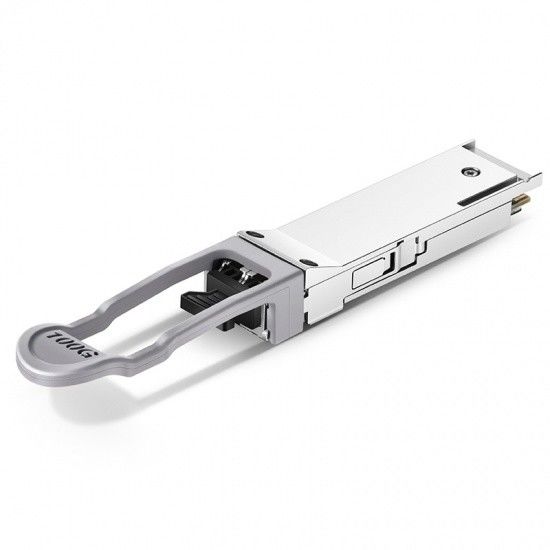

| Product Name: | Compatible Juniper 740-061405 QSFP-100G-SR4-C QSFP-28 100G-SR4 Transceiver | Part Number: | QSFP-100G-SR4-C |
|---|---|---|---|
| Connector: | MPO-12 | Transceiver Type: | QSFP28 |
| Distance: | 70m | Maximum Power Consumption (W): | 5W |
| Operating Temperature: | 0° C To 70° C | Storage Temperature: | –40° C To 85° C |
| Fiber Grade: | OM3 | Receiver Sensitivity: | +3.5 DBm |
| Stressed Receiver Sensitivity: | -3.0 DBm | ||
| Highlight: | Juniper 740-061405 QSFP-100G-SR4-C,QSFP-28 100G-SR4 Transceiver,Juniper 740-061405 Transceiver |
||
Compatible Juniper QSFP28 100GBase-SR4 100m MMF Optical Transceiver
QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4)IEEE 802.3bm
Diagnostic supportYes
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter wavelengths (range)840 nm through 860 nm
Receive lane wavelengths (range)840 nm through 860 nm
Transmitter output power, each lane (minimum)–8.4 dBm
Transmitter output power, each lane (maximum)2.4 dBm
Receiver input power, each lane (minimum)–10.3 dBm
Receiver input power, each lane (maximum)2.4 dBm
Cable typeMMFCore size/cladding50/125 µm
Fiber gradeOM3OM4
Effective modal bandwidth2000 MHz x km4700 MHz x km
Distance70 m100 m
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
