Product Details:
|
| Data Rate: | 100Gb/s | Form-Factor: | QSFP28 |
|---|---|---|---|
| Center Wavelength: | 1296-1309nm | Transmission Distance: | 30km |
| Connector: | LC | Lasers: | EML |
| Maximum Power Consumption: | 4.5W | Operating Case Temperature: | 0~70℃ |
| Highlight: | 100Gb/s QSFP28 ER4 Lite,Dual Rates QSFP28 ER4 Lite,ER4 Lite 100G QSFP28 Module |
||

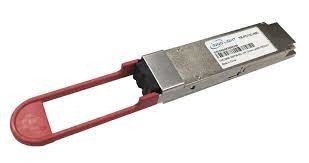

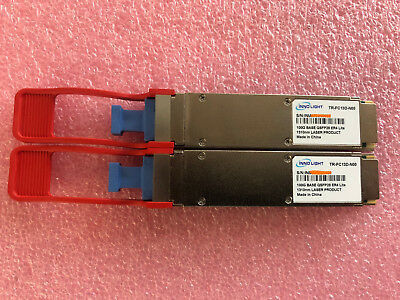

InnoLight 100Gb/s QSFP28 ER4 Lite Dual Rates Optical Transceiver TR-FC13D-NSN
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 Year |
| Tx power | -0.7 to + 6.5 dBm |
| Rx sensitivity | 14.85/-18.7 to -3.5 dBm |
| Extinction Ratio | 7dB |
| Power consumption |
4.5W
|
| Applications |
Ethernet 100GBASE-ER4 |
The QSFP28 100G TR-FC13D-NSN is a 100Gb/s and 112Gb/s transceiver module designed for optical communication applications compliant to Ethernet 100GBASE-ER4 Lite and OTN OTU4 4L1-9C1F Lite standards.
The module converts 4 input channels of 25Gb/s or 28Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s or 112Gb/s optical transmission.
Reversely on the receiver side, the module de-multiplexes a 100Gb/s or 112Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of QSFP28 100G TR-FC13D-NSN?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT): -5 to 85°C(23 to 185°F)
Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
| -14.85 / -18.7 |
