Product Details:
|
| Form Factor: | QSFP28 | Rate: | 100G |
|---|---|---|---|
| Wavelength: | CWDM-T2 | Temperature: | 0-70°C |
| Cable Type: | SMF | Reach: | 2km |
| Maximum Power Consumption: | < 3.5W | Connector: | MPO |
| Transceiver Type: | SR4 | DOM: | Support |
| Highlight: | MPO 100G QSFP28 Module,ROHS Certified 100G QSFP28 Module,2km 100G QSFP28 CWDM4 |
||

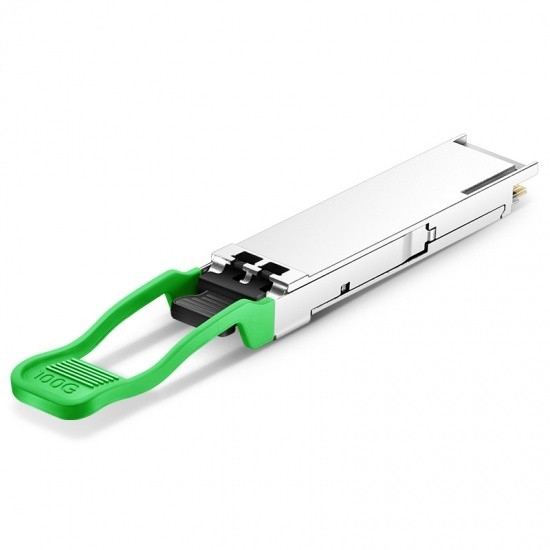

Compatible Juniper QSFP-100G-CWDM-T2 QSFP28 CWDM4 SMF 2km Optical Transceiver
QSFP28 QSFP-100G-CWDM-T2
Part Number 740-061408
Speed100
Gigabit Ethernet Breakout
Capable No
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector Duplex LC
Monitoring Available Yes
Digital Optical Monitoring Yes
Standard: 100GBASE-CWDM4MSA compliance (SFF, for e.g. SFF-8665)
100G CWDM4 MSA Technical Specifications
2km Optical Specifications
Diagnostic support Yes
Signaling rate, each lane25.78125 ± 100 ppm
Transmitter wavelengths (range)
–1264.5 nm through 1277.5 nm
–1284.5 nm through 1297.5 nm
–1304.5 nm through 1317.5 nm
–1324.5 nm through 1337.5 nm
Transmitter output power, each lane (minimum)–6.5 dBm
Transmitter output power, each lane (maximum)2.5 dBm
Receiver input power, each lane (minimum)–11.5 dBm
Receiver input power, each lane (maximum)2.5 dBm
Cable typeSMFCore size/cladding9/125 µm
Fiber grade SMF
Distance2 km
