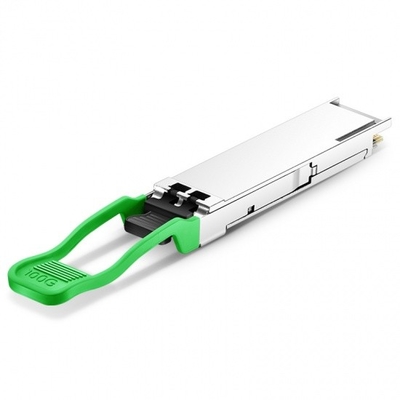

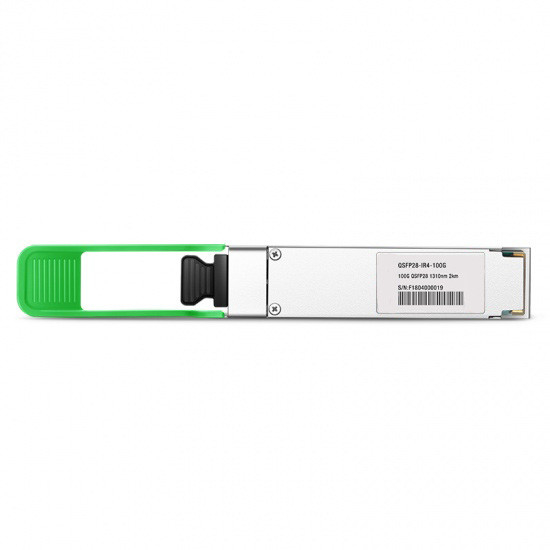

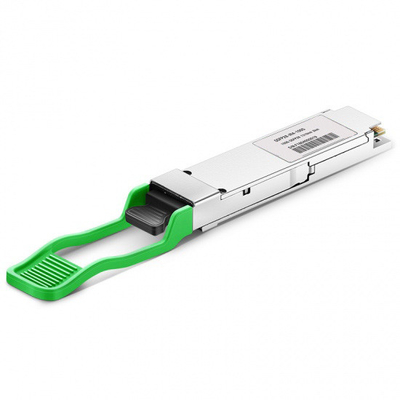

Compatible Juniper QSFP 100G CWDM4 ET SMF 2km Optical Module

Compatible Juniper QSFP-100G-CWDM4-ET 100GE CWDM4 Optics SMF 2km Optical Module

QSFP-100G-CWDM4-ET

Part Number 740-080724
Speed 100 Gigabit Ethernet
Breakout Capable No
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector Duplex LC
Monitoring Available Yes
Digital Optical Monitoring Yes
Standard: 100GBASE-CWDM4MSA compliance (SFF, for e.g. SFF-8665)SFF-8665
Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Signaling rate, each lane25.78125 GBd +/- 100 ppmTransmitter fibers2Transmitter wavelengths (range)
1264.5 nm to 1277.5 nm
1284.5 nm to 1297.5 nm
1304.5 nm to 1317.5 nm
1324.5 nm to 1337.5 nm
Receive lane wavelengths (range)
1264.5 nm to 1277.5 nm
1284.5 nm to 1297.5 nm
1304.5 nm to 1317.5 nm
1324.5 nm to 1337.5 nm
Transmitter output power, each lane (minimum)-6.5 dBm
Transmitter output power, each lane (maximum)2.5 dBm
Receiver input power, each lane (minimum)-11.5 dBm
Receiver input power, each lane (maximum)2.5 dBm
Receiver sensitivity (OMA), each lane (maximum)-10.0 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-7.3 dBm
Cable typeSMFCore size/cladding9/125 µmDistance2 km
Maximum Power consumption (W)4.5 W
Operating Temperature (range)–5° C to 85° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 73.4 mm
