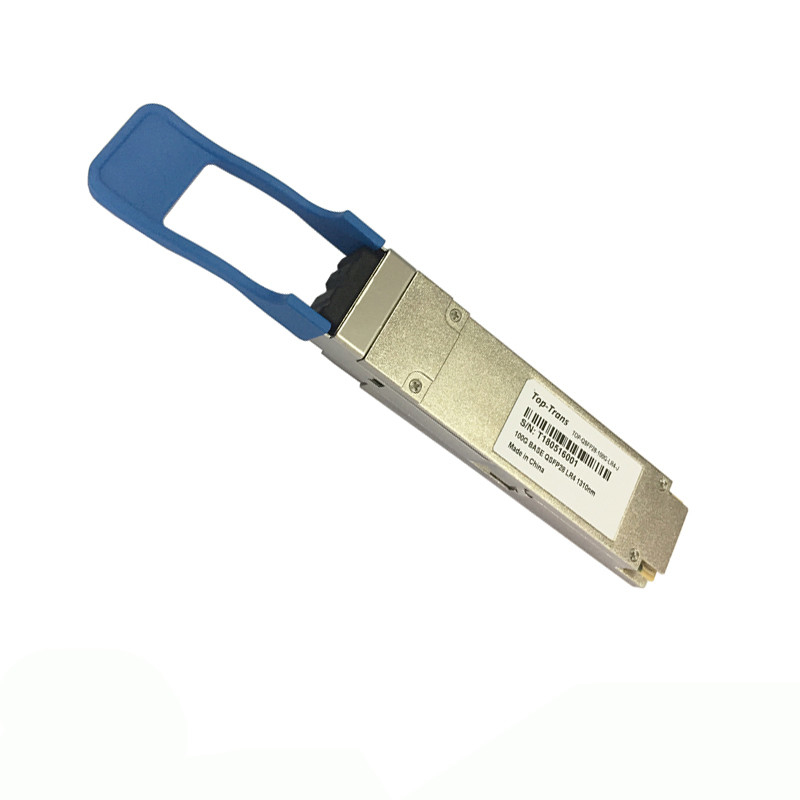

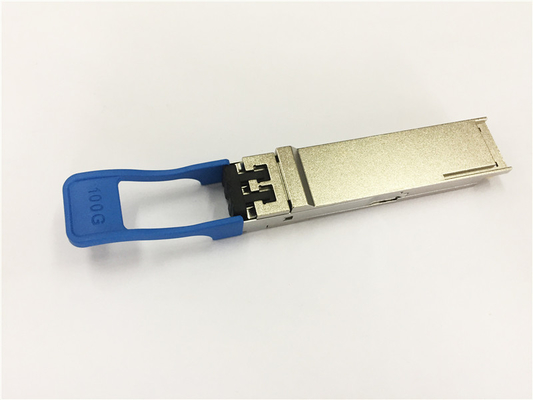

Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex

Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex
Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex

Large Image :  Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex

Product Details:
Place of Origin: Guangdong, China
Brand Name: Top-Trans
Certification: ISO9001, ROHS, CE, FCC
Model Number: TQSFP28-100G-LR4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: SFP Blister Box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3000pcs per month

Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex

Description
Data Rate: 103.125Gbps ( 4 * 25.78Gbps) Factor Form: QSFP28
Center Wavelength: LAN-WDM 1296, 1301, 1305, 1309NM Transmission: 10KM Via OS2 SMF
Temperature: 0°C~70°C Commercial OEM/ODM: Supported
Weight: 60 Grams Power Consumption: <3.5W
Modulation: NRZ Laser: LAN-WDM DFB + PIN
Highlight:

10KM 100G QSFP28 Module

,

ISO9001 100G QSFP28 Module

,

Duplex QSFP 100G LR4

Arista XVR-10068-20 QSFP-100G-LR4 Compatible QSFP28 Module 10KM SMF Duplex



Cloud migration enables small and medium enterprise deploying the application in the hyperscale datacenter for flexible computing and storage force, optimized operation efficiency, low CAPEX/OPEX operation and easy maintenance. SDN technology improves network virtualization and upgrades Cloud ISP service from virtual machine base into Serverless base with more SAAS application. To accelerate Cloud migration, the next generation Data Center exists the huge demand on the network capacity to offer high bandwidth and reduced latency for better network efficiency.



For Cloud VPC Peering and Data center interconnect, 100GBASE-LR4 Transceivers can provide the 100Gigabit high speed and low latency physical connection for traffic aggregation. Top-Trans QSFP28 100G Module is designed for 100GBASE interconnect. This QSFP28 module uses LAN-WDM DFB transmitter and PIN receiver to create the 100Gigabit connection via the fiber link over up to 10KM on OS2 SMF. This QSFP28 module features the LC Duplex connector which can interoperate with other 100GBASE-LR4 optics by direct connect. This QSFP28 module is fully MSA compliant and features the online DOM/DDM to monitor the operation status. This QSFP28 module can be programmed with the compatibility to interoperate with Arista Network QSFP28 ports.



• 4x25G LAN-WDM optical architecture up to 103.1Gbps
• QSFP28 MSA compliant • Up to 10km transmission
• Duplex LC connector • Power dissipation < 3.5W
• Built-in digital diagnostic functions
• RoHS compliant • Operating temperature range: 0◦C to 70◦C



Compatible platform



Arista 7050X3, 7050X4, 7358X4, 7060X, 7260X, 7130, 7170, 7280R, 7280R3, 7300X, 7388X5, 7368X4, 7500R, 7500R3, 7800R3



Parameters

Arista XVR-10068-20 QSFP 100G LR4 Compatible Module 10KM SMF Duplex 0



Data Speed 103.125Gbps
Center Wavelength 1296, 1301, 1305, 1309nm
Fiber Type Singlemode
Transmission 10km via OS2 SMF
Connector LC Duplex
Lasers DFB + PIN
Tx power -10.6 - 4.5 dBm
Rx sensitivity <<-10.6  dBm
Extinction Ratio 4 dB
Power Consumption < 3.5 W





FAQ



  • Can I use your QSFP28 module with Arista original QSFP-100G-LR4 optics?

       Yes, It can interoperate with Arista optics



  • Can I use your QSFP28 module with Arista original QSFP-100G-LR1 optics?

        No, QSFP-100G-LR1 uses PAM4 modulation rather than NRZ, they are not interoperatable



  • What's your optic warranty terms?

​         3 Years, 1 Year free Replacement, 3 Years free repairment for non-human made hardware defects



  • What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?



Our optics is produced using fresh new components through the strict QC control over parameter and performance test through error detector and eye diagram. The qualification ratio is over 99.9%If any quality defects happen within the warranty, we will arrange the replace/repair service immediately
