Product Details:
|
| Data Rate: | 100Gb/s | Form-Factor: | QSFP28 |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 2km |
| Temperature: | 0°C To 70°C | Weight: | 0.06kg |
| Warranty: | 1 Year | RX: | PIN |
| Highlight: | Parallel Single Mode Transceiver,QSFP28 IR4 Single Mode Transceiver,IR4 100G QSFP28 Module |
||

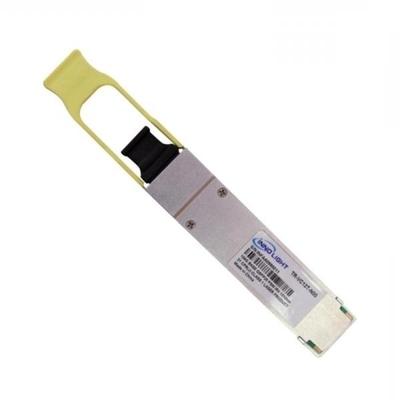

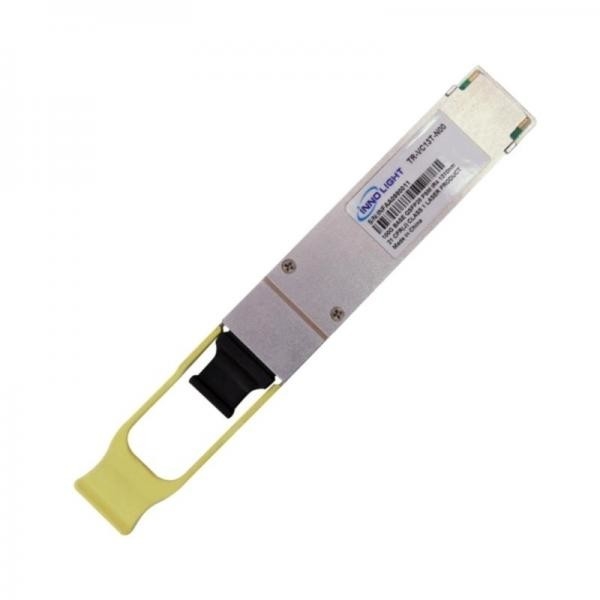

Innolight 100Gb/s QSFP28 IR4 Parallel Single Mode Optical Transceiver TR-VC13T-N00
| Fiber Type | Single mode |
| Connector | MPO |
| Single power supply | +3.3v |
| Tx power | -5.5 dB to 2dB |
| Rx sensitivity | -10.2 dB to 2dB |
| Extinction Ratio | 3.5dB |
| Power Consumption | 3.5W |
| Applications | 100G Ethernet links |
QSFP28 100Gb/s TR-VC13T-N00 Features
QSFP28 100Gb/s TR-VC13T-N00 APPLICATIONS
QSFP28 100Gb/s TR-VC13T-N00 description
QSFP28 100Gb/s TR-VC13T-N00 Functional Description
QSFP28 100Gb/s TR-VC13T-N00 is a QSFP28 parallel single mode optical transceiver with an MTP/MPO fiber ribbon connector.
The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels.
All input data signals are differential and internally terminated. The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals.
The receiver module outputs electrical signals are also voltage compatible with Common Mode Logic (CML) levels.
All data signals are differential and support a data rates up to 25Gb/s per channel.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
