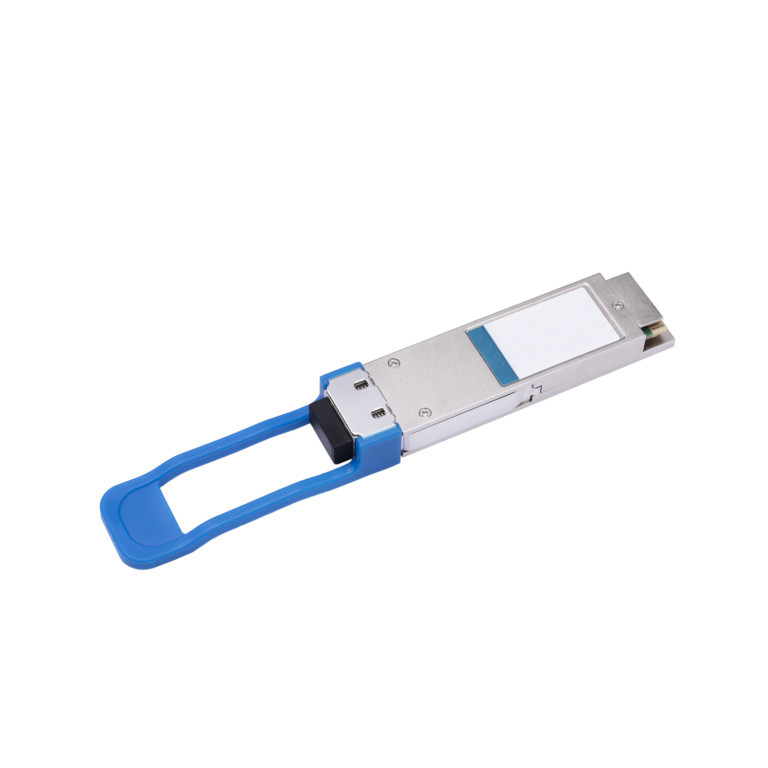

Compatible Juniper QSFP-100G-LR , 100GBASE-LR1 SMF 10km Optical Module

Compatible Juniper QSFP-100G-LR QSFP28 100G-LR/100GBASE-LR1 SMF 10km Optical Module

Part Number 740-096178
Speed 100 Gigabit Ethernet
Breakout Capable No
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector Duplex LC
Monitoring Available Yes
Digital Optical Monitoring Yes
Additional Information These transceivers interoperate with the QDD-4X100G breakout optics. For example, the QDD-4X100G-FR interconnects with four QSFP-100G-LR transceivers. The QSFP-100G-LR transceivers interconnect in single links (QSFP-100G-LR to QSFP-100G-LR or to QSFP-100G-FR) and interoperate at the shortest link length. The QSFP-100G-LR transceivers are not compatible with earlier-generation 100-Gbps transceivers (for example, QSFP-100G-CWDM4 and QSFP-100G-LR4).Standard: 100G Lambda MSA, 100G-LR IEEE P802.3cu, 100GBASE-LR1MSA compliance (SFF, for e.g. SFF-8665)SFF-8665Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Supported applications100G-LR or 100GBASE-LR1 (clause 140), CAUI-4 (no FEC)Signaling rate, each lane
Host lane: NRZ; 25.78125 GBd ± 100 ppm
Media lane: PAM4; 53.125 GBd ± 100 ppm
Transmitter fibers1Transmitter wavelengths (range)1304.5 nm to 1317.5 nmReceive lane wavelengths (range)1304.5 nm to 1317.5 nmTransmitter output power, each lane (minimum)-1.4 dBmTransmitter output power, each lane (maximum)4.5 dBmTransmitter and dispersion eye closure for PAM4 (TDECQ), each lane (maximum)3.4 dBReceiver input power, each lane (minimum)-8.2 dBmReceiver input power, each lane (maximum)4.8 dBmReceiver sensitivity (OMA), each lane (maximum)
For TECQ < 1.4 dB: -6.1 dBm
For 1.4 dB ≤ TECQ ≤ 3.4 dB: -7.5 + TECQ dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-4.1 dBm
Cable type SMF
Core size/cladding9/125 µm
Fiber gradeIEEE Clause 140.10.1: IEC 60793-2-50 type B1.1, type B1.3, or type B6_a or requirements in IEEE Table 140–13 where they differ.
Distance10 km
Maximum Power consumption (W)4.0 W
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 73.4 mm
