Product Details:
|
| Center Wavelength: | 1304.5 Nm To 1317.5 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Form Factor: | QSFP28 | Transmission Distance: | 0.2 Kg |
| Weight: | 0.06KG Per Piece | Power: | 4 W |
| Connector: | Duplex LC | Distance: | 10km |
| Highlight: | Compatible Juniper QSFP28 100GBASE LR4,Extended Temperature QSFP28 100GBASE LR4,4W 100G QSFP28 Module |
||

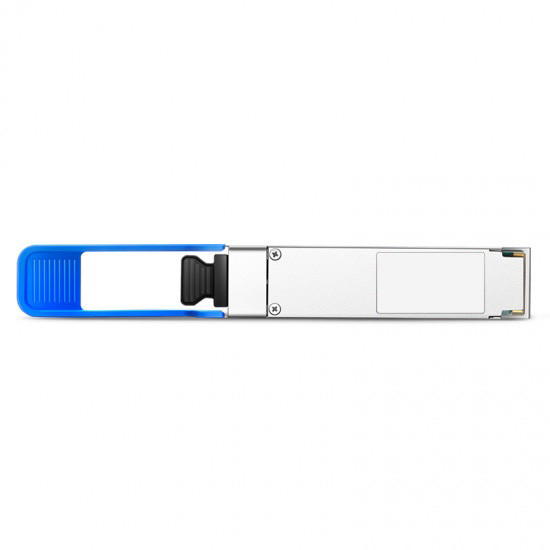

Compatible Juniper QSFP-100G-LR4-ET QSFP28 100GBASE-LR4 Extended Temperature Optical Module
Part Number740-080725
Speed100 Gigabit Ethernet
Breakout CapableNo
Transceiver TypeQSFP28
Product TypeOptical Transceiver
ConnectorDuplex LC
Monitoring AvailableYes
Digital Optical MonitoringYes
Standard: 100GBASE-LR4MSA compliance (SFF, for e.g. SFF-8665)SFF-8665Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter fibers2
Transmitter wavelengths (range)
1294.53 nm to 1296.59 nm
1299.02 nm to 1301.09 nm
1303.54 nm to 1305.63 nm
1308.09 nm to 1310.19 nm
Receive lane wavelengths (range)
1294.53 nm to 1296.59 nm
1299.02 nm to 1301.09 nm
1303.54 nm to 1305.63 nm
1308.09 nm to 1310.19 nm
Transmitter output power, each lane (minimum)-4.3 dBm
Transmitter output power, each lane (maximum)4.5 dBm
Receiver input power, each lane (minimum)-10.6 dBm
Receiver input power, each lane (maximum)4.5 dBm
Receiver sensitivity (OMA), each lane (maximum)-8.6 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-6.8 dBm
Cable typeSMFCore size/cladding9/125 µmDistance10 km
Maximum Power consumption (W)4.5 W
Operating Temperature (range)–5° C to 85° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 73.4 mm
