Product Details:
|
| Center Wavelength: | 1304.5 Nm To 1317.5 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Form Factor: | QSFP28 | Transmission Distance: | 0.2 Kg |
| Weight: | 0.06KG Per Piece | Power: | 4 W |
| Connector: | Duplex LC | Distance: | 10km |
| Highlight: | Blue Pull 100G QSFP28 Module,Compatible Juniper 100G QSFP28 Module,1310nm QSFP 100G LR4 IT |
||

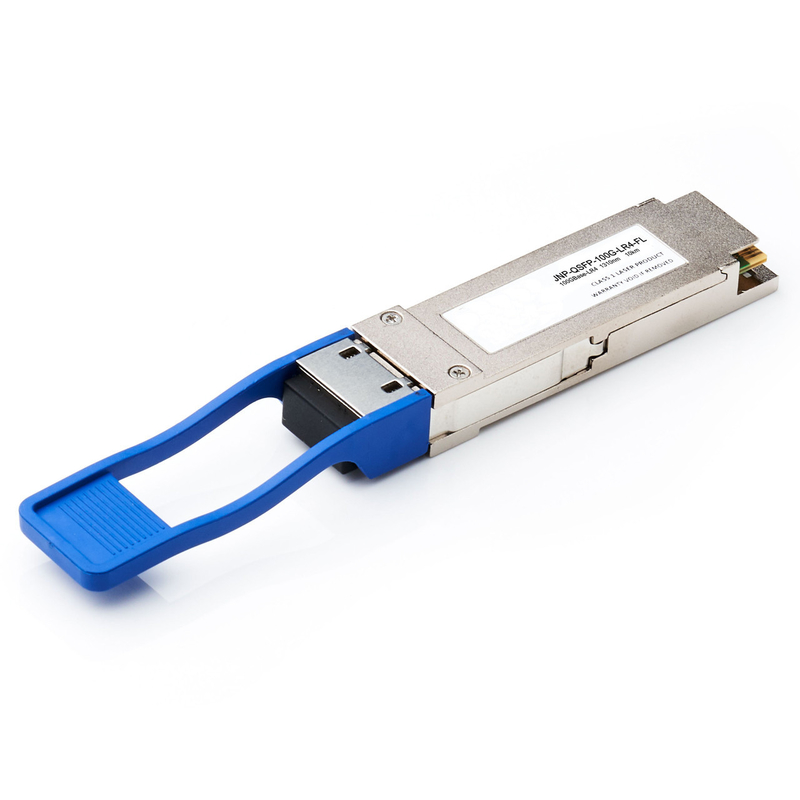

Compatible Juniper QSFP-100G-LR4-IT 10km 1310nm Blue Pull Optical Module
QSFP-100G-LR4-ETQSFP28
100GBASE-LR4 Extended Temperature (-5 through 85°C)
Overview & Specifications
Supported PlatformsSupported Interface Modules
Part Number740-080725
Speed100 Gigabit Ethernet
Breakout CapableNo
Transceiver TypeQSFP28
Product TypeOptical Transceiver
ConnectorDuplex LC
Monitoring AvailableYes
Digital Optical MonitoringYes
Standard: 100GBASE-LR4MSA compliance (SFF, for e.g. SFF-8665)SFF-8665Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter fibers2
Transmitter wavelengths (range)
1294.53 nm to 1296.59 nm
1299.02 nm to 1301.09 nm
1303.54 nm to 1305.63 nm
1308.09 nm to 1310.19 nm
Receive lane wavelengths (range)
1294.53 nm to 1296.59 nm
1299.02 nm to 1301.09 nm
1303.54 nm to 1305.63 nm
1308.09 nm to 1310.19 nm
Transmitter output power, each lane (minimum)-4.3 dBm
Transmitter output power, each lane (maximum)4.5 dBm
Receiver input power, each lane (minimum)-10.6 dBm
Receiver input power, each lane (maximum)4.5 dBm
Receiver sensitivity (OMA), each lane (maximum)-8.6 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-6.8 dBm
Cable typeSMFCore size/cladding9/125 µm
Distance10 kmMaximum Power consumption (W)4.5 W
Operating Temperature (range)–5° C to 85° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 73.4 mm
