Product Details:
|
| Center Wavelength: | 1310nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Transmission Distance: | 500m | Weight: | 0.06KG Per Piece |
| Protocol: | QSFP28 MSA SFF-8665 Compliance | Warranty: | 1 Year |
| Highlight: | 500m 100GBase DR,Single Lambda 100GBase DR,LC SMF 100G QSFP28 Module |
||
Intel SPTSLP2SLCDF Single Lambda Transceiver Module TAA 100GBase-DR QSFP28 1310nm 500m LC SMF
Intel's QSFP28 100G 500m Optical Transceiver's Overview
This Intel® SPTSLP2SLCDF QSFP28 transceiver provides 100GBase-DR throughput up to 500m over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and
perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant.
Features:
• SFF-8665 Compliance
• Duplex LC Connector
• Single-mode Fiber
• Commercial Temperature 0 to 70 Celsius
• Hot Pluggable
• Metal with Lower EMI
• Excellent ESD Protection
• RoHS Compliant and Lead Free
Applications:
• Connectivity for large-scale cloud and enterprise data centers
• Ethernet switch, server, router, and client-side telecom optical interfaces
Parameters for the Intel QSFP28 100G Optical Transceiver:
| Fiber Type | OS2 single-mode fiber |
| Connector | LC |
| Transmit and Receive Wavelength (nm) | 1310nm |
| Pull Tab Color | Green |
| Tx power | -2.9 to 4dBm |
| Rx sensitivity | -5.9 to 4dBm |
| Power Consumption | 4.5W |
|
Electrical interface compliant
|
IEEE 802.3bm CAUI-4 4x25G standard |
| Dimensions | (H x W x D)13.5 x 18.4 x 72.4 mm |

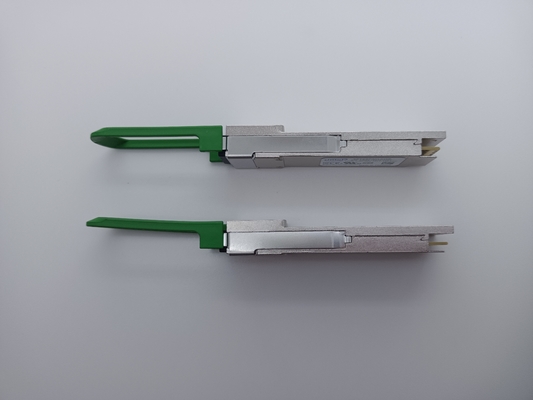

Photo for Intel's QSFP28 100G SPTSLP2SLCDF Transceiver
FAQ
Q1. Are your transceiver modules compatible with any brand?
A1:Yes, All the brand Topstar's SFP compatible as the following:Nortel,Juniper,Alcatel-lucent,FOUNDRY,
EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, D-Link, Feixun...etc
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock ,ready to ship. some of higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Aliexpress escow, money gram ,cash payment
Warranty: 3 years
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
