Product Details:
|
| Wavelength: | 1310nm | Cable Type: | SMF |
|---|---|---|---|
| Commercial Temperature Range: | 0 To 70°C | Extinction Ratio: | 4dB |
| Power Consumption: | ≤3.5W | Reach: | 10Km |
| Highlight: | 1310nm 10Km 100GBASE LR4,ROHS Certified 100GBASE LR4,QSFP28 Dual LC Optical Modules |
||

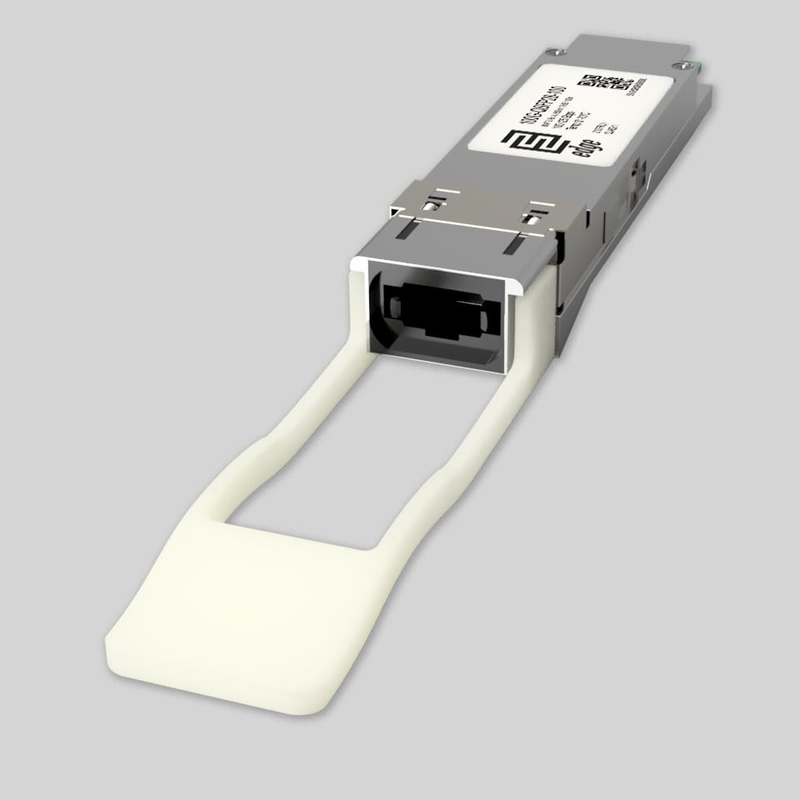

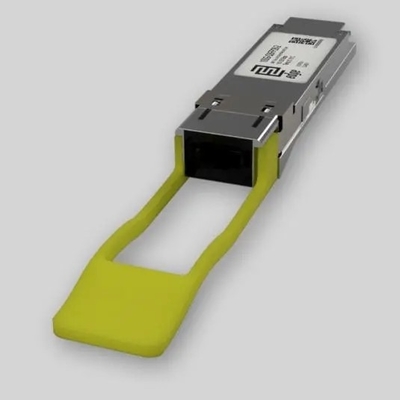

100GBASE-LR4 OTU4 & 128GFC 1310nm 10Km SMF Ciena QSFP28 Dual-LC Optical Modules
Ciena® 160-9402-900 QSFP28 100G Product Features
Feature:
SFF-8665 Compliance
Duplex LC Connector
Commercial Temperature 0 to 70 Celsius
Single-mode Fiber
Hot Pluggable
Excellent ESD Protection
Metal with Lower EMI
RoHS Compliant and Lead Free
Application
OTN OTU4
100GBase Ethernet
Access and Enterprise
| Form Factor | QSFP28 |
| Wavelength | 1310 |
| 100G QSFP28 Application | 100GBase Ethernet |
| DDMI | Support |
| Extinction Ratio | 4dB |
| Power Consumption | ≤3.5W |
This Ciena® 160-9402-900 compatible QSFP28 transceiver provides 100GBase/OTU4-LR4 throughput up to 10km over single-mode fiber (SMF)
using a wavelength of 1295nm to 1309nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent Ciena® transceiver.
This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it
will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime
warranty.
Regulatory Compliance
ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.4
ESD to the LC Receptacle: compatible with IEC 61000-4-3
EMI/EMC compatible with FCC Part 15 Subpart B Rules, EN55022:2010
Laser Eye Safety compatible with FDA 21CFR, EN60950-1& EN (IEC) 60825-1,2
RoHS compliant with EU RoHS 2.0 directive 2015/863/EU
QSFP28 100G Description
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of optical module ?
A2.There are professional testing equipments and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q4. What are the trade terms?
A4.Lead Time: 1-3 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
Q5. Do you have compatible ones?
A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
