Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF

Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF
Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF

Large Image :  Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF

Product Details:
Place of Origin: Malaysia
Brand Name: Brocade
Certification: CE FCC
Model Number: 57-1000498-01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: price is negotiable
Packaging Details: Anti-static blister box
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month

Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF

Description
Center Wavelength: 1295 Nm To 1310 Nm Temperature: 0°C~+70°C
Weight: 0.05KG/PCS Performance: Auto-sensing Of 8, 14, And 28Gb/s Port Speeds
Cable Type: SMF Cable Distance: 25km
Connector: Industry-standard LC Duplex Compliant: RoHS
Highlight:

FC SFP+ Transceiver

,

1310nm SFP+ Transceiver

,

57-1000498-01 SFP+ Transceiver

Brocade 57-1000498-01 FC SFP+ Transceiver XBR-000479 32GBASE-ELWL SFP28 1310nm 25km SMF





Brocade 32Gb/s ELWL FC SFP+ Optimized, Certified Optical Transceivers for Extending Service Provider and Data Center Networks



The Brocade 32 Gb/s Long Wavelength (ELWL) 25 km SFP+, part of the Brocade family of small form-factor pluggable (SFP) optical transceivers,is optimized to fully leverage Brocade 32 Gb/s switch and director products. Brocade ELWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions.


The Brocade ELWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON devices over distance for business continuity and disaster recovery. Together with Brocade switching products, they provide state-of-the-art performance,helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.


End-to-End Compatibility and Reliability
The Brocade 32 Gb/s ELWL 25 km SFP+ modules support highly reliable operations in data center fabrics and are optimized for Brocade 32 Gb/s switching platforms. They undergo rigorous qualification and certification testing that results in an end-to-end solution that is easier to maintain— helping improve the availability of data center fabrics supporting missioncritical applications.



Key Features
• Hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signaling rates up to 28.05 Gb/s
• 1310 nm DFB laser
• FC-PI-6 compliance for 28.05/14.025/8.5 Gb/s operation



Ordering Part Number
• XBR-000278 (1-pack)



Regulatory and Standards Compliance
• North America: UL/CSA 60950, CDRH Class 1
• European Union: EN 60950, EN 60825 Class 1


Caution
• Do not look through the optical ports, as it is a potential eye hazard.
• SFP is an ESD sensitivity Class 1 device. It should be handled accordingly



Parameters for the 32Gb/s ELWL 25km FC SFP+ Transceiver Module:

Performance Fibre Channel: 8.5 Gb/s, 14.025 Gb/s, and 28.05 Gb/s line speed, full duplex; auto-sensing of 8 Gb/s, 14 Gb/s, and 28 Gb/s port speeds
Media Hot-pluggable, industry-standard SFP+, LC connector; ELWL 25 km; minimum distance of 10 km required
Operating Parameters

Transmit (Tx):

• Wavelength: 1295 nm to 1310 nm

• Spectral width: 1.0 nm

• Average power: +2.0 dBm to +7.0 dBm

• RIN: −130 dB/Hz max.

• OMA: 1.585 mW min.


Receive (Rx):

• Average power: 2 dBm max.

• Optical return loss: 26 dB min.

• Unstressed sensitivity: 41 µW, −13.9 dBm



Size

Width: 14.81 mm (0.58 inches)
Height: 11.90 mm (0.47 inches)
Depth: 56.50 mm (2.22 inches)

Storage Temperature −40°C to +85°C (−40°F to +185°F)
Power Dissipation 1.5W max

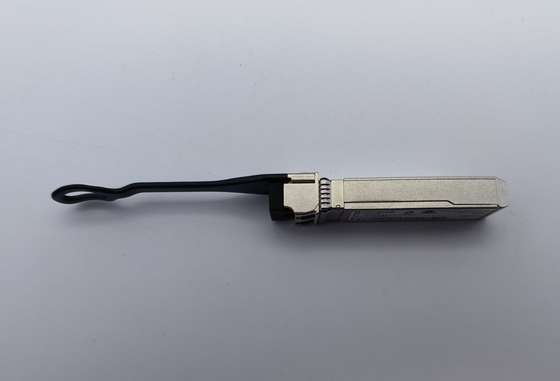

Photo for Brocade 32Gb/s ELWL FC SFP+ Transceiver



Brocade 57-1000498-01 FC SFP+ Transceiver 32GBASE-ELWL SFP28 1310nm 25km SMF 0





FAQ

Q1. Except for this Brocade 32Gb/s ELWL FC SFP+ Transceiver optical modules, what else Cisco sfp can you offer?

A1: pls check the below form for the Brocade optical module we can offer;



Data Rate
Description
Manufacturing
Part Number
Brocade Ordering
Part Number
4x32G FC QSFP+
SWL
57-1000351-01
XBR-000275 (1-pack)
4x32G FC QSFP+
SWL
57-1000490-01
XBR-000475 (1-pack)
4x32G FC QSFP+
2 km
57-1000480-01
XBR-000285 (1-pack)
64G FC SFP+
SWL
57-1000495-01
XBR-000462 (1-pack)
XBR-000463 (8-pack)
64G FC SFP+
LWL - 10 km
57-1000496-01
XBR-000468 (1-pack)
XBR-000469 (8-pack)
64G FC SFP+
ELWL - 25 km
57-1000497-01
XBR-000466 (1-pack)
32G FC SFP+
SWL
57-1000333-01
XBR-000212 (1-pack)
XBR-000213 (8-pack)
32G FC SFP+
SWL
57-1000485-01
XBR-000412 (1-pack)
XBR-000413 (8-pack)
32G FC SFP+
LWL - 10 km
57-1000332-01
XBR-000238 (1-pack)
XBR-000239 (8-pack)
32G FC SFP+
LWL - 10 km
57-1000486-01
XBR-000438 (1-pack)
XBR-000439 (8-pack)
32G FC SFP+
ELWL - 25 km
57-1000355-01
XBR-000278 (1-pack)
32G FC SFP+
ELWL - 25 km
57-1000494-01
XBR-000478 (1-pack)
32G FC SFP+
ELWL - 25 km
57-1000498-01
XBR-000479 (1-pack)
16G FC SFP+
SWL
57-0000088-01
XBR-000192 (1-pack)
XBR-000193 (8-pack)
16G FC SFP+
SWL
57-1000487-01
XBR-000492 (1-pack)
XBR-000493 (8-pack)
16G FC SFP+
LWL - 10 km
57-0000089-01
XBR-000198 (1-pack)
XBR-000199 (8-pack)
16G FC SFP+
LWL - 10 km
57-1000488-01
XBR-000498 (1-pack)
XBR-000499 (8-pack)
16G FC SFP+
ELWL - 25 km
57-1000262-01
XBR-000258 (1-pack)
16G FC SFP+
ELWL - 25 km
57-1000489-01
XBR-000458 (1-pack)
8G FC SFP+
SWL
57-1000117-01
XBR-000163 (1-pack)
XBR-000164 (8-pack)
8G FC SFP+ LWL - 10 km
57-1000027-02
XBR-000153 (1-pack)
XBR-000172 (8-pack)
8G FC SFP+ ELWL - 25 km
57-0000080-01
XBR-000174 (1-pack)





Q2:Is this genuine Brocade Original 32G ELWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



Q3:Does your SFP provide a quality warranty?
A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



Q4:Can you send this SFP module to my place? and how long does it take?

​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
