Product Details:
|
| Center Wavelength: | 840 Nm To 860 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | Auto-sensing Of 56.1, And 112.2Gb/s Port Speeds |
| Cable Type: | MMF | Cable Distance: | 100m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
| Highlight: | 128G QSFP28 Transceiver,FC QSFP28 Transceiver,QSFP28 Transceiver 4x32G |
||
Brocade 57-1000351-01 128G FC QSFP28 Transceiver 4x32G SWL 100m XBR-000275 Optical module
Brocade 128Gb/s SW FC SFP transceiver Specifications
The Brocade® 4×32Gb/s Short Wavelength (SWL) Quad Small Form-Factor Pluggable (QSFP+) transceivers, part of the Brocade family of optical transceivers, are optimized for Brocade switches. These optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
Parameters for the 4x32G 128Gb/s SW FC SFP Transceiver Module:
| Performance |
Fibre Channel: • 112.2Gb/s (4×28.05Gb/s) line speed, full duplex • 56.1Gb/s (4x14.025Gb/s) line speed, full duplex |
| Media | Hot-pluggable, industry-standard QSFP28, MPO 1×12 ribbon cable connector, Short Wavelength (SWL) |
| Operating Parameters |
Transmit (Tx): • Wavelength: 840 nm to 860 nm
|
| Operating Distances | 100m on OM4, OM4+, and OM5 multimode fiber; 70m on OM3 multimode fiber. These distances assume 1.0-dBm connector loss. |
| Size |
Width: 18.35 mm (0.72 in.) Height: 12.9 mm (0.51 in.) Depth: 71.00 mm (2.82 in.) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Power Dissipation | 2.5W |

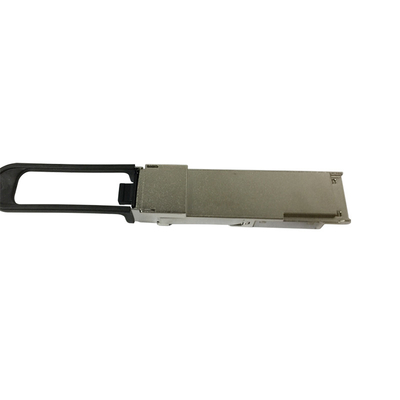

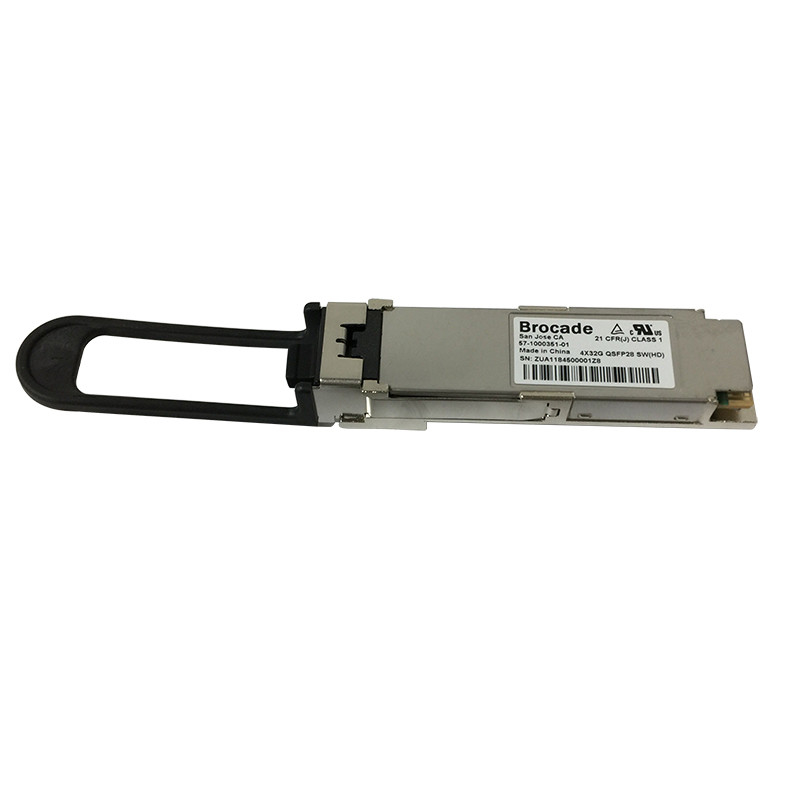

Photo for Brocade 4x32G 128Gb/s SW FC SFP Transceiver
FAQ
Q1. Except for this Brocade 4x32G 128Gb/s SW FC SFP Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 128G ELWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
