Product Details:
|
| Data Rate: | 40Gb/s | Form-Factor: | QSFP |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 1.4km |
| Standard Temperature: | 0°C To 70°C | Industrial Temperature: | -40°C To +85 °C |
| Connector Type: | MPO | Single Power Supply: | +3.3V |
| Highlight: | QSFP-40G-PLRL4 QSFP+ Transceiver,QSFP+ Optical Transceiver 100m |
||

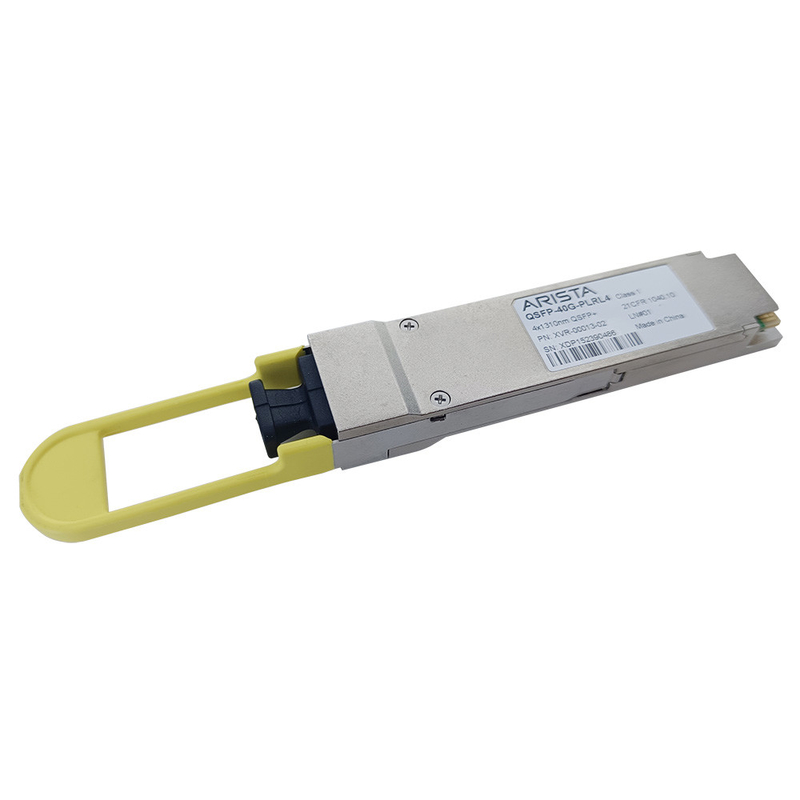

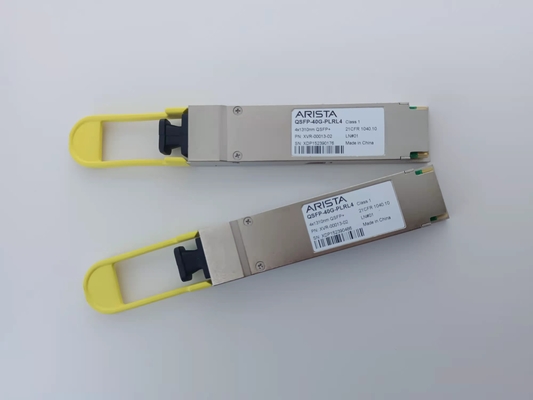

Arista QSFP-40G-PLRL4 Compatible 40GBASE-SR-BiDi QSFP+ Duplex LC 100m Optical Transceiver
| Fiber Type | Single mode |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -5.2 to +0.5 dBm |
| Rx sensitivity |
-12.6 to 0.5 dBm |
| Extinction Ratio | 3.5 dB |
| Power Consumption | 3.5 W |
| DDM | Yes |
Spec:
Product Features
• 4 Parallel lanes design
• Up to 11.2Gbps data rate per channel
• Aggregate bandwidth of up to 40G
• QSFP+ MSA compliant
• Up to 1.5km transmission
• Maximum 3.5W operation power
• Single +3.3V power supply
• Operating case temperature:
Standard: 0~70 °C
Industrial -40 to +85 °C
• RoHS-6 compliant
Description
The QSFP-40G-PLRL4 is a parallel 40 Gbps Quad Small Form-factor Pluggable (QSFP+) optical module.
It provides increased port density and total system cost savings.
The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10 Gbps operation for an aggregate data rate of 40 Gbps over 1.5km of single mode fiber.
An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle.
The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a z-pluggable 38-pin connector.
The module operates via a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules.
A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information.
Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The «Part» design is compliant to QSFP+ Multi-source agreement (MSA) in terms of form factor, optical/electrical connection and digital diagnostic interface.
It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module can be managed through the I2C two-wire serial interface.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
