Product Details:
|
| Center Wavelength: | 1295nm To 1325nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | Auto-sensing Of 4, 8, And 14Gb/s Port Speeds |
| Cable Type: | SMF | Cable Distance: | 10km |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
| Highlight: | SFP Transceiver 16GBASE-LWL,57-1000488-01 SFP Transceiver,10km FC SFP Transceiver |
||
Brocade 57-1000488-01 XBR-000499 FC SFP Transceiver 16GBASE-LWL Secure 10km 1310nm SMF
Brocade 16Gb/s LWL FC SFP+ Transceiver Specifications
The Brocade® 16Gb/s Long Wavelength (LWL) 10-km optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 16Gb/s director and switch products. The Brocade 16Gb/s LWL 10-km SFPs are hot-swappable, low-voltage (3.3V), digital diagnostic optical transceivers that support high-speed serial links over single-mode optical fiber at signaling rates up to 14.025Gb/s. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-5) for LC duplex transceivers.
Highlights
• Provides high system reliability through a rigorous qualification and certification process.
• Eliminates issues related to SFP incompatibility, reducing downtime and support costs.
• Extends Fibre Channel connectivity over distance in enterprise environments, enabling highperformance business continuity and disaster recovery solutions.
• Ensures reliable FICON connectivity, interoperability, and architectural adherence between IBM Z mainframes and Brocade SAN products and storage devices.
Caution
• Do not look through the optical ports because doing so is a potential eye hazard.
• The SFP is an ESD sensitivity Class 2 device. It should be handled accordingly.
Ordering Part Numbers
• XBR-000198 (1-pack)
• XBR-000199 (8-pack)
• XBR-000498 (1-pack)
• XBR-000499 (8-pack)
Parameters for the 16Gb/s LWL FC SFP+ Transceiver Module:
| Fiber Type | single mode fiber |
| Connector | LC |
| Transmit&Receive Wavelength (nm) | 1295nm to 1325nm |
| Pull Tab Color | Black |
| Optical return loss | -12 dB min |
| Tx Power | +5.0 dBm to +2.0 dBm |
| Rx Sensitivity | 63 µW, −12.0 dBm |
| Storage Temperature | −40°C to 85°C |
| Power Consumption | 1.08W |
| Single Power Supply | 3.3 V |
| Dimensions | (H x W x D)12.21 x 14.80 x 56.70 mm |

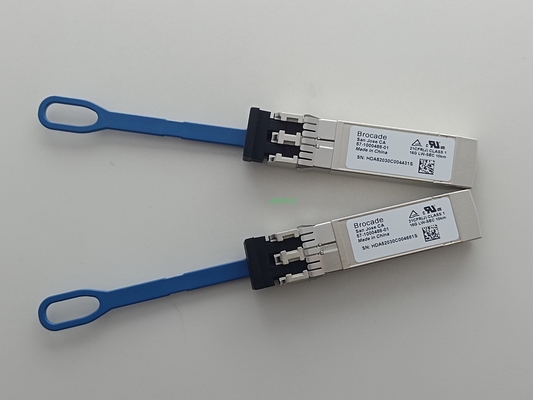

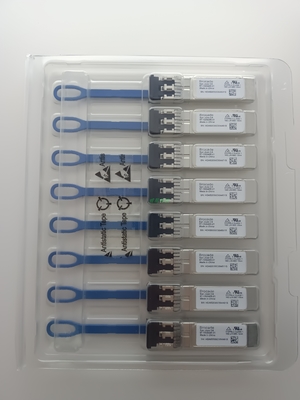

Photo for Brocade 16Gb/s LWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 16Gb/s ELWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 16G LWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
