Brocade 57-1000262-01 FC SFP+ Transceiver SFP+16G ELWL 1310nm 25km Single Mode

Brocade 57-1000262-01 FC SFP+ Transceiver XBR-000258 SFP+16G ELWL1310nm 25km single mode

Brocade 16Gb/s ELWL FC SFP+ Transceiver Specifications

• 1310 nm DFB laser

• FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers,

providing real-time monitoring of:

– Transmitted optical power

– Received optical power

– Laser bias current

– Temperature

– Supply voltage

• 25 km link lengths at 14.025Gb/s on 9 µm single-mode fiber

• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe

• Compliance with Restriction on Hazardous Substances (RoHS) directive

Highlights

• Provides high system reliability through a rigorous qualification and certification process.

• Enables Brocade switch and director platforms with the highest performance to support business continuity and disaster recovery.

• Eliminates issues related to SFP incompatibility, reducing downtime and support costs.

• Extends Fibre Channel connectivity over distance.

Ordering Part Numbers

• XBR-000258 (1-pack)

Parameters for the 16Gb/s ELWL FC SFP+ Transceiver Module:

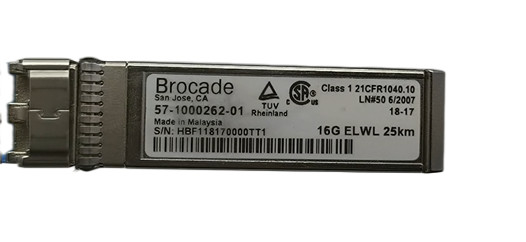

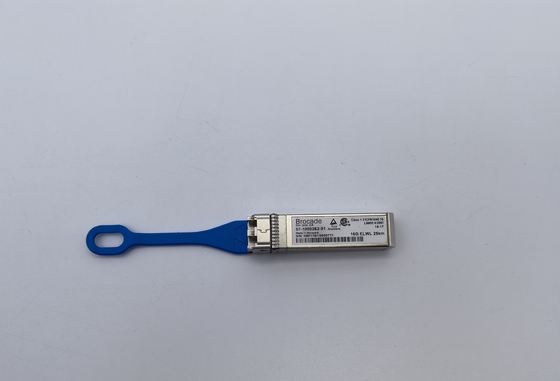

Photo for Brocade 16Gb/s ELWL FC SFP+ Transceiver

FAQ

Q1. Except for this Brocade 16Gb/s ELWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?

A1: pls check the below form for the Brocade optical module we can offer;

Q2:Is this genuine Brocade Original 16G LWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.

Q3:Does your SFP provide a quality warranty?
A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;

Q4:Can you send this SFP module to my place? and how long does it take?

​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
