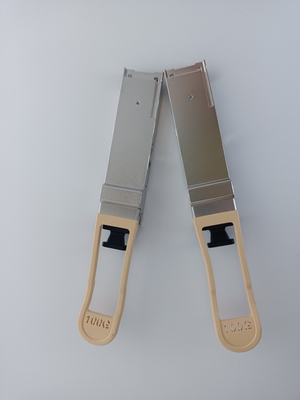

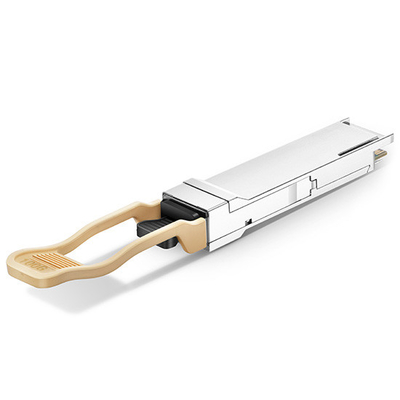

100G 850nm 100M LC PAM4 BiDi Fiber Optics QSFP28 Module Broadcom AFBR-89BDDZ-FT1

QSFP28 100G 850nm 100M LC VCSEL PAM4 BiDi Fiber Optics Module Broadcom AFBR-89BDDZ-FT1

Spec:

• Compliant to 100GbE electrical specification 802.3bm (Annex 83E CAUI-4) with No Host FEC

• 100G link distances up to 70m OM3, 100m OM4 per TIA informative guidance proposal V2, and 150m OM5 per TIA-492AAAE specification.

• QSFP28 MSA specification-compliant, including new functions per SFF-8636

• Class 1 eye safety

• Pull tab: ease of transceiver insertion and extraction

• +10°C to +70°C case temperature operating range

• Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm

• Proven high reliability 850-nm and 900-nm technology: Broadcom VCSEL transmitter and PIN detector

• Hot pluggable QSFP28 transceiver for ease of installation and servicing

• Two-wire serial (TWS) interface with digital monitoring and maskable interrupts for expanded functionality

Description

The AFBR-89BDDZ-FT1 is a four-channel, pluggable, multimode, fiber-optic QSFP28 transceiver for 100-Gigabit Ethernet applications.

This transceiver is a high-performance module for short-range data communication and interconnect applications.

It integrates four host electrical data lanes in each direction at 25 Gb/s into two optical lanes at 50 Gb/s giving an aggregated bandwidth of 100 Gb/s.

It allows optical communication up to 100m over a two-fiber duplex LC optical multimode OM4 cable.

The pull tab facilitates the insertion and extraction of these transceivers in a high-density environment.

Each electrical lane operates at 25.78125 Gb/s and conforms to the 100GE CAUI4 interface with the host FEC turned off.

Products And Aervices Provided

Topstar is one of the leading manufacturers of Fiber Optical transceive module since 2006, located in China capital of technological innovation- Shenzhen City；

Our main products included OEM compatible sfp optical transceiver, 10G SFP+ optical module, 25G SFP28 module, 40G QSFP+ module, 100G QSFP28 module to 400G optical modules used for Ethernet network,

and some fiber accessories like, DAC cable, AOC cable, patch cable, ethernet server adapter etc...

We are also re-seller of original sfp transceiver like Finisar/ Brocade /Cisco/Innolight/AOI/Avago/Juniper/Dell/WTD, and we also offer Brocade FC SFP Transceiver,

SAN switch, blade, fan assembly and POD license kit for storage area network solutions；

Technical Strength

Topstar proudly own 5,000 Square Meters complete Dust-Free workshop. Together with our 20 dedicated engineering experts in the R&D, we create excellent products.

Applying the industrial best Management Practice combined with full range of test equipments, we stand to be the expert in Optical Transceiver field. These expertise enabling us the ability to supply full series of High Quality products;

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What will you do if I found the product has any quality problem?

A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
