Product Details:
|
| Data Rate: | 100Gb/s | Form-Factor: | QSFP28 |
|---|---|---|---|
| Center Wavelength: | 850nm | Reach: | 400m |
| Standard Temperature: | 0 To 70°C | Connector Type: | MPO |
| Interface Type: | ESR4 | ||
| Highlight: | 400m QSFP+ Transceiver Module,Fiber Optics Transceiver Module,40Gbase QSFP+ Transceiver Module |
||

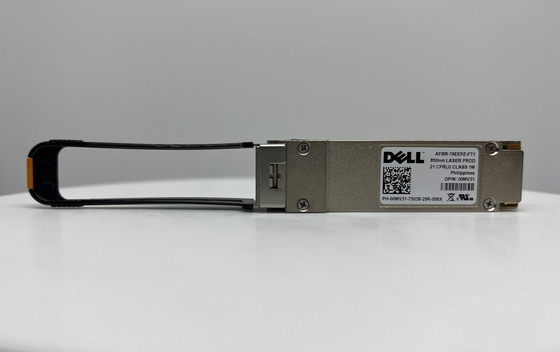

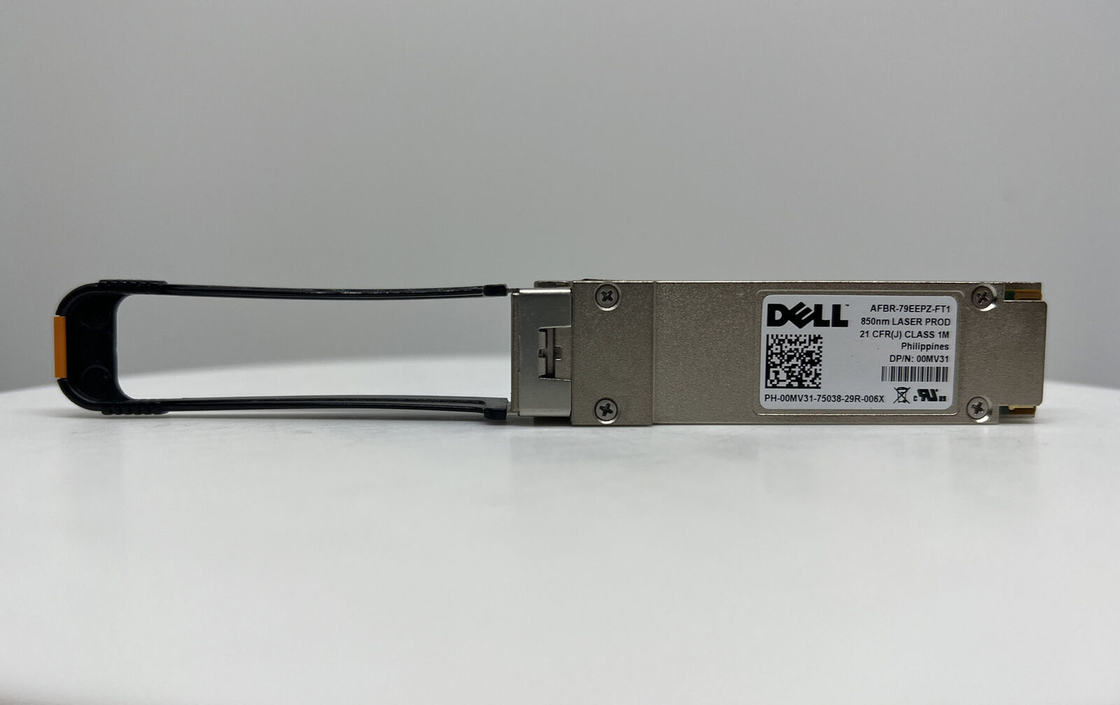

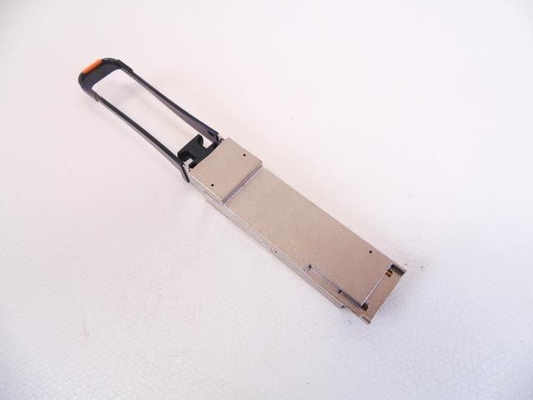

QSFP-40G-SR4 eSR4 40Gbase 400m QSFP+ AFBR-79EEPZ-FT1 Fiber Optics Transceiver Module
| DDM | Yes |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -7.5 to +1.0dBm |
| Rx sensitivity |
-9.9 to +2.4 dBm |
| Optical Power Budget | 2.4 dB |
| Power Consumption | 3.5W |
| Cable Type | MMF |
Spec:
Applications
Applications
Description
The AFBR-79EEPZ-FT1 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver with in-tegrated push-pull tab for 40 Gigabit Ethernet (40GbE) ap-plications
with extended reach up to 300m (400m) using OM3 (OM4) multimode fiber (MMF)
and with added capa-bility of inter-operating with IEEE 10GBASE-SR compliant products.
This transceiver is a high performance module for short-range multi-lane data communication and in-terconnect applications.
It integrates four data lanes in each direction with each lane operating at 10.3125 Gbps, giving an aggregated bandwidth of 40 Gbps.
This transceiver can also be used for high density 10 gigabit Ethernet applications.
It allows optical interoperability up to 300m (400m) using OM3 (OM4) MMF with any 10 gigabit Ethernet (10GbE) transceivers,
compliant to the IEEE 802.3ae 10GBASE-SR specifications, of form factors such as SFP+, XFP and X2.
It provides an effective port count of over 100 within 1 RU rack. The push-pull tab fa-cilitates the insertion and extraction of these transceiv-ers in such high density environment.
This transceiver is designated as a QSFP+ eSR4 solution, where the letter "e" represents extended reach beyond 100m MMF with interoperability between this QSFP+ transceiver and any IEEE 10GBASE-SR compliant modules.
Technical Strength
Topstar proudly own 5,000 Square Meters complete Dust-Free workshop. Together with our 20 dedicated engineering experts in the R&D, we create excellent products.
Applying the industrial best Management Practice combined with full range of test equipments, we stand to be the expert in Optical Transceiver field. These expertise enabling us the ability to supply full series of High Quality products;
Organizational Structure&Company Advantages
We also has bridle-wise manage team ,R&D team and QC team ,and can supply customer their desired sample in the earliest date , arrange your order correctly, strictly control the mass production quality and lead time , and let the business goes smoothly !
Topstar owns Shenzhen Baoan OEM/ODM Factory, Shenzhen Longgang Sales Company, USA San Francisco Office,Shenzhen warehouse and HONGKONG warehouse to offer the One-Stop souring of high quality product platform for our customers.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
