Product Details:
|
| Rate: | 8.5G | Wavelength: | 1310 Nm |
|---|---|---|---|
| Reach: | 10KM | Connector Type: | Dual LC |
| Extinction Ratio: | 10dB | Media Type: | Single Mode Fiber |
| Form Factor: | SFP+ | Temperature: | 0°C ~ 40°C |
| Highlight: | Fibre Channel SFP+ Modules,8Gbps Cisco SFP Module,Long Wavelength Cisco SFP Module |
||

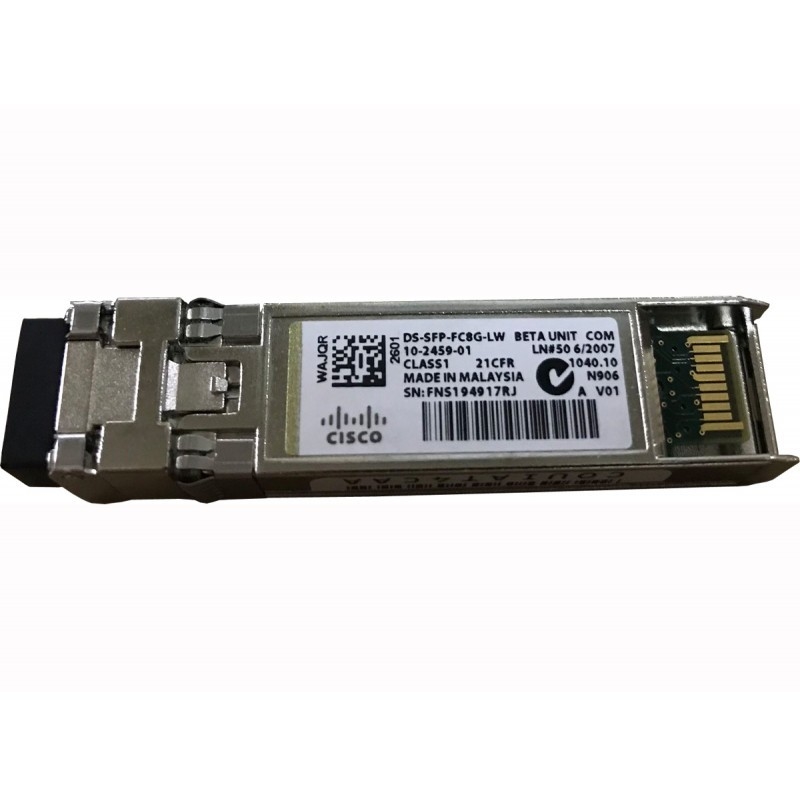

Cisco 8Gbps DS-SFP-FC8G-LW Fibre Channel SFP+ Modules Long Wavelength Optics
Part Number: DS-SFP-FC8G-LW
Description: Cisco 2-Gbps/4-Gbps/8-Gbps Fibre Channel —long wavelength SFP+ optics
Connector: Dual LC connector
Cable Type: SMF
Wavelength: 1310nm
Cable Distance: 6.2 mi (10 km)
Average Transmit Power (dBm)
Maximum: -3 (2 Gbps), -1 (4 Gbps), 0.5 (8 Gbps)
Minimum: -11.7 (2 Gbps), -8.4 (4 Gbps), -8.4 (8 Gbps)
Average Receive Power (dBm)
Maximum: -3 (2 Gbps), -1 (4 Gbps), 0.5 (8 Gbps)
Minimum: -
Fiber Loss Budget (dBm):
-7.8 (2 Gbps)
7.8 (4 Gbps)
6.4 (8 Gbps)
Dimensions (H x W x D): 8.5 x 13.75 x 55.2 mm
Operating Temperature Range: 0°C ~ 40°C
Storage Temperature Range: -40°C ~ 85°C
| Rate | 8G |
| Connection Type | Dual -LC |
| Maximum Transfer Distance | 1310 nm |
| Reach | 10KM |
| Media type | Single mode Fiber |
| temperature range | 0°C ~ 40°C |
| Form factor | SFP+ |
| Power Supply | 3.3V |
