Product Details:
|
| Center Wavelength: | 1264 Nm To 1337 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | 4×53.125Gb/s Line Speed, Full Duplex |
| Cable Type: | SMF | Cable Distance: | 2km |
| Connector: | Industry-standard LC Duplex | Compliant: | CDRH Class 1 |
| Pull Color: | Black | ||
| Highlight: | 200G QSFP+ Transceiver,QSFP+ Transceiver Optical Module,57-1000506-01 Transceiver |
||
Brocade XBR-000476 57-1000506-01 200G CWDM 2km Gen 7 ICL FC QSFP+ Transceiver Optical Module
Brocade 200G 2km FC QSFP+ Transceiver Specification
Highlights
• Provides extended connectivity for Brocade X7 Director chassis-tochassis interconnect.
• Operates over duplex single-mode fiber.
• Uses an industry-standard singlemode LC connector.
• Supports up to 2 km link length over single-mode fiber.
• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe.
• RoHS 6 compliant.
Ordering Part Number
XBR-000476 (1-pack)
Parameters for the 200Gb/s 2km FC QSFP+Transceiver Module:
| Performance | 4×53.125Gb/s line speed, full duplex |
| Media | Hot-pluggable, industry-standard QSFP, LC connector |
| Operating Parameters |
Transmit (Tx): • Wavelength: 1264 nm to 1337 nm • Average power: –4.2 dBm to +4.7 dBm per channel • OMA: −1.2 dBm to +4.5 dBm per channel
Receive (Rx): • Wavelength: 1264 nm to 1337 nm • Average power: +5.7 dBm • Unstressed sensitivity: −6.5 dBm • Receiver return loss: Max –26 dB • SRS OMA: −3.6 dBm |
| Size |
Width: 18.35 mm (0.72 in.) Height: 13.25 mm (0.52 in.) Depth: 71.0 mm (2.79 in.) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Power Dissipation | 6W |

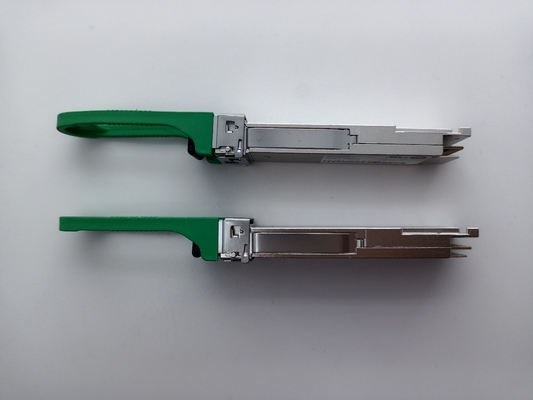

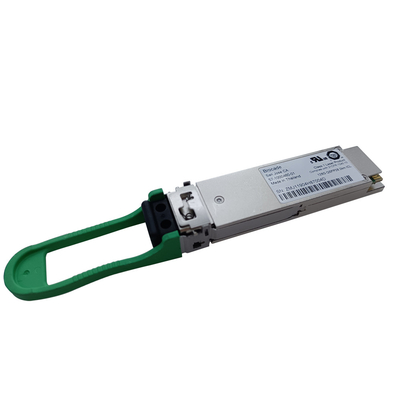

Photo for Brocade 200G 2km FC QSFP+ Transceiver
FAQ
Q1. Except for this Brocade 200G 2km FC QSFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 200G 2km FC QSFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
