Product Details:
|
| Center Wavelength: | 840nm To 860nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | 10.3125Gb/s Line Speed, Full Duplex |
| Cable Type: | MMF | Cable Distance: | 300m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module
Brocade 10Gb/s SWL FC SFP+ Transceiver Specifications
The Brocade 10.3125Gb/s SR SFP+ is an 850-nm SFP that complies with 10G Ethernet specifications.
Product highlights include:
• 850-nm multimode VCSEL transmitter
• IEEE 802.3ae compliance for 10.3125Gb/s operation
• Diagnostic features per SFF-8472,
Diagnostic Monitoring Interface for Optical Transceivers, providing realtime monitoring of:
− Transmitted optical power
− Received optical power
− Laser bias current
− Temperature
− Supply voltage
• Industry-standard LC duplex connector
• 300m link lengths at 10.3125Gb/s on OM3 fiber
• IEC 60825-1 Class 1/ CDRH Class 1 laser, eye-safe
• RoHS compliance Caution
• Do not look through the optical ports, as it is a potential eye hazard.
• The SFP is an ESD sensitivity Class 1 device. It should be handled accordingly.
Ordering Part Number
• XBR-000180 (1-pack)
• XBR-000181 (8-pack)
Regulatory and Standards Compliance
North America: UL/CSA 60950, CDRH Class 1
European Union: EN 60950, EN 60825 Class 1
Parameters for the 10Gb/s SWL 300M FC SFP+ Transceiver Module:
| Performance | Ethernet: 10.3125Gb/s line speed, full duplex |
| Media | Hot-pluggable, industry-standard SFP+, LC connector; Short Reach (SR) |
| Operating Parameters |
Transmit (Tx): • Wavelength: 840 nm to 860 nm • Average power: ≤ –1 dBm • RIN: –128 dB-Hz max • Extinction ratio: 3 dB
Receive (Rx): • Wavelength: 840 nm to 860 nm • Average power: –1 dBm max • Optical return loss: 12 dB min • Unstressed sensitivity: 77 µW, −11.1 dBm • SRS OMA: 180 µW, –7.5 dBm • 3-dB cutoff maximum: 12.3 GHz |
| Operating Distances |
OM2 50 µm (500 MHz×km): • 10.3125Gb/s Ethernet: Distance: 82 meters max OM3 50 µm (2000 MHz×km): • 10.3125Gb/s Ethernet: Distance: 300 meters max |
| Size |
Width: 14.80 mm (0.58 inches) Height: 12.21 mm (0.48 inches) Depth: 56.70 mm (2.23 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 1.0W |

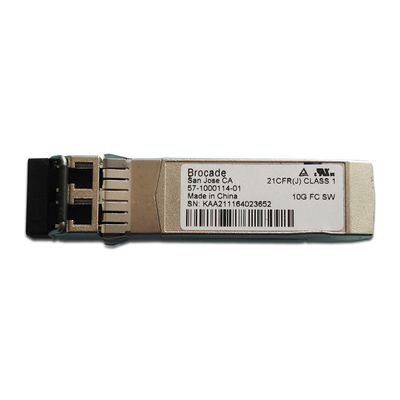

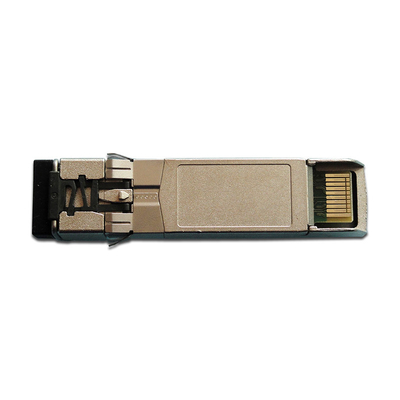

Photo for Brocade 10Gb/s SWL FC SFP+ Transceiver
