Product Details:
|
| Center Wavelength: | 840nm To 860nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | 10.3125Gb/s Line Speed, Full Duplex |
| Cable Type: | MMF | Cable Distance: | 100m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
Brocade 57-1000130-01 10G-SFPP-USR FC SFP+ Transceiver 10G 850nm 100m Duplex LC MMF Optical Module
Brocade 10Gb/s SWL FC SFP+ Transceiver Specifications
The Brocade® 10Gb/s Short Reach (SR) SFP+, part of the Brocade family of small form-factor pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 10Gb/s director and switch products. Together, these optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
The Brocade 10Gb/s SR SFP+ modules support highly reliable operations in data center fabrics and are optimized for Brocade 10Gb/s switching platforms. They undergo rigorous qualification and certification testing, which results in an end-to-end solution that is easier to maintain— improving the availability of data center fabrics that support missioncritical applications.
Parameters for the 10Gb/s SWL 100M FC SFP+ Transceiver Module:
| Performance | Ethernet: 10.3125Gb/s line speed, full duplex |
| Media | Hot-pluggable, industry-standard SFP+, LC connector; Short Reach (SR) |
| Operating Parameters |
Transmit (Tx): • Wavelength: 840 nm to 860 nm • Average power: ≤ –1 dBm • RIN: –128 dB-Hz max • Extinction ratio: 3 dB
Receive (Rx): • Wavelength: 840 nm to 860 nm • Average power: –1 dBm max • Optical return loss: 12 dB min • Unstressed sensitivity: 77 µW, −11.1 dBm • SRS OMA: 180 µW, –7.5 dBm • 3-dB cutoff maximum: 12.3 GHz |
| Operating Distances |
OM2 50 µm (500 MHz×km): • 10.3125Gb/s Ethernet: Distance: 82 meters max OM3 50 µm (2000 MHz×km): • 10.3125Gb/s Ethernet: Distance: 300 meters max |
| Size |
Width: 14.80 mm (0.58 inches) Height: 12.21 mm (0.48 inches) Depth: 56.70 mm (2.23 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 1.0W |

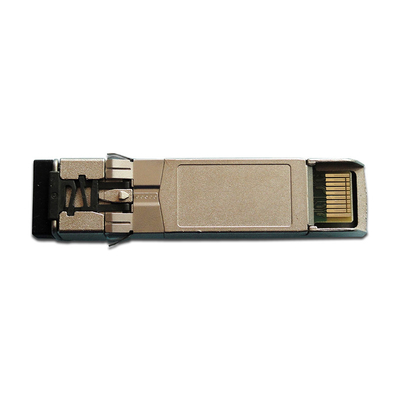

Photo for Brocade 16Gb/s ELWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 16Gb/s ELWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 16G LWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
