Product Details:
|
| Form-Factor: | 400G QSFP-DD DR4 1310nm 500m | Data Rate: | 400G |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 500m |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.06KG Per Piece | Warranty: | 3 Years |

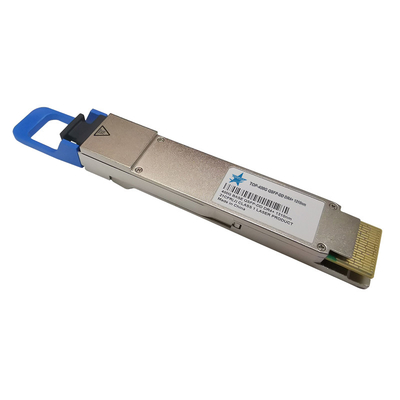

Original Innolight T-DP4CNH-N00 400G QSFP-DD DR4 1310nm 500M Optical Module
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFPDD) optical module designed for 500m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.
Parameters
| Fiber Type | MMF |
| Connector | MPO-16 |
| Lasers and TIA | EML APD |
| Tx Power | 0.4 to 6.5 dBm |
| Rx Sensitivity | -29 to -15.1 dBm |
| Extinction Ratio | 6 dB |
| Power Consumption | <5 W |
| Multi Power Supply | 3.3 V |
PRODUCT FEATURES
• QSFP-DD MSA compliant
• Parallel 4 Optical Lanes
• IEEE802.3bs Specification compliant
• Up to 500m transmission on single mode fiber (SMF) with FEC
• Operating case temperature: 0 to 70oC
• 8x53.125Gb/s electrical interface (400GAUI-8)
• Data Rate 106.25Gbps (PAM4) per channel.
• Maximum power consumption 12W
• MPO-12 connector
• RoHS compliant
Applications
• 400G Ethernet
• Infiniband interconnects
• Datacenter Enterprise networking
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
