Product Details:
|
| Rate: | QSFP+ | Wavelength: | 850 Nm |
|---|---|---|---|
| Connector: | MPO | Media: | Multimode Fiber Mode |
| Reach: | 400M | DDM: | Yes |
| Power Consumption: | 1.2W | Warranty: | 1 Year |
| Highlight: | MPO QSFP-40G-CSR4,MMF QSFP-40G-CSR4,40GbE Fiber Optic Transceivers |
||

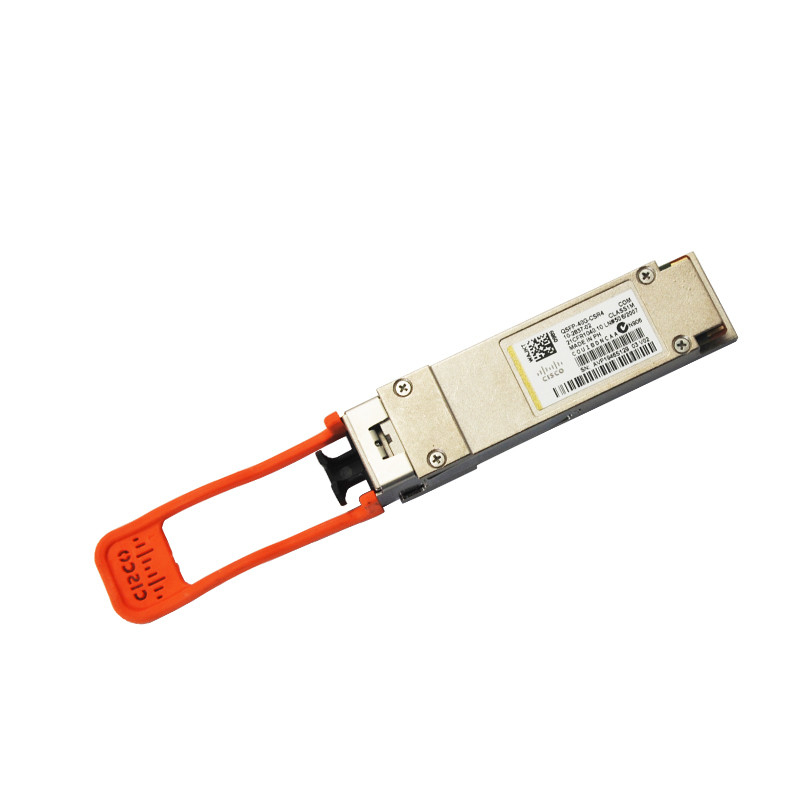

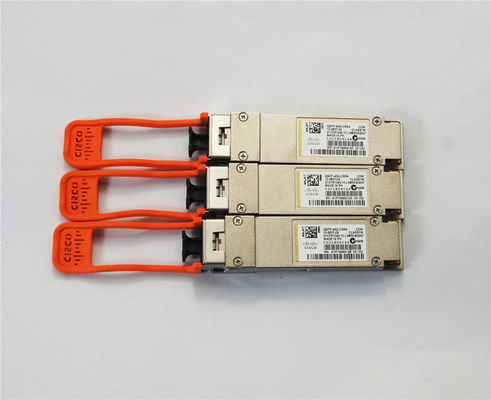

40GbE Multimode Fiber MMF Optic Transceivers Cisco Switch QSFP+ Optical Modules
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 40 Gbps
Type: Multi Mode
Connection Type: MPO
Maximum Transfer Distance: 400 m (1312 ft.)
MTBF: 95,832,027 hours
Power Consumption: Low power consumption
Digital Diagnostics Monitoring (DDM): Yes
Cisco 40GBASE-CSR4 QSFP Modules extend the reach of the IEEE 40GBASE-SR4 interface to 300 and 400 meters on laser-
optimized OM3, and OM4/OM5 multimode parallel fiber, respectively. Each 10-gigabit lane of this module is compliant to IEEE
10GBASE-SR
specifications. This module can be used for native 40G optical links over 12-fiber parallel cables with MPO/MTP female
connectors or in a 4x10G breakout mode with parallel to duplex fiber breakout cables for connectivity to four 10GBASE-SR
interfaces. Cisco QSFP-40G-CSR4 is optimized to guarantee interoperability over the complete specification range of
10GBASE-SR.
| Form Factor | QSFP+ |
| Wavelength | 850 nm |
| Connector Type | MPO |
| Media type | Multimode Fiber Modules |
| Reach | 400M |
| Rate | 40G |
