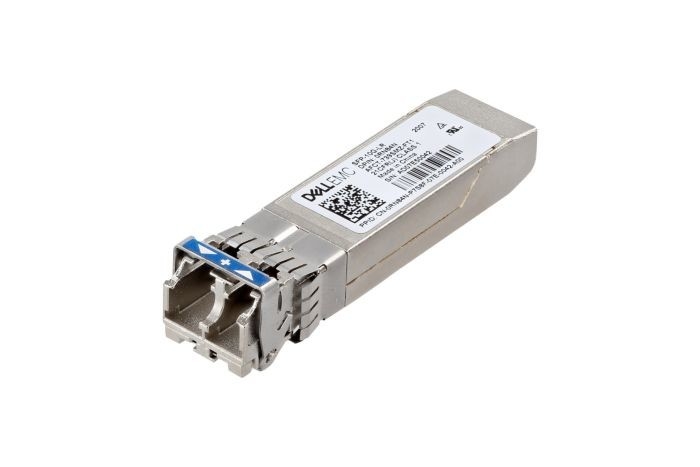

Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver

Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver
Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver

Large Image :  Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver

Product Details:
Place of Origin: Malaysia
Brand Name: Dell
Certification: RoHS
Model Number: AFCT-739SMZ-FT1
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Price is negotiable
Packaging Details: Anti-boxes,Standard packaging
Delivery Time: 3-5 working day
Payment Terms: T/T, Paypal、Credit card
Supply Ability: 5000pcs/month

Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver

Description
Data Rate: 10Gb/s Form-Factor: SFP+
Center Wavelength: 1310nm Reach: 10km
Standard Temperature: 0 To 70°C Connector Type: Fibre LC Duplex
Dell Part Number: RN84N
Highlight:

AFCT-739SMZ-FT1 SFP-10G-LR

,

10km 1310nm SFP-10G-LR

,

Gigabit Optical Transceiver Module

Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver Module



Weight 0.03kg
Warranty 1Year
Fibre Type Single Mode Fibre (SMF)
Cabling Type 10GBase-LR
Max Transfer Distance 6.2 miles
Device Type SFP+ transceiver module





Spec:



  • Device Type: SFP+ transceiver module



  • Form Factor: Plug-in module



  • Cabling Type: 10GBase-LR



  • Data Transfer Rate: 10 Gbps



  • Optical Wave Length: 1310 nm



  • Data Link Protocol: 10 GigE



  • Max Transfer Distance: 6.2 miles



  • Designed For: Networking N1524, N1548, N2024, N2048, N3024, N3048, N4032, N4064, S3124, S3148, X4012; PowerEdge T130, T330, T430, T630; Networking N2128, N3024, N3048, N3132, X1052; PowerEdge R440, R540, R640, R740, T440, T640



Description



The Avago Technologies AFBR-79EEPZ is a F
our-Channel,
Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver with in
-
tegrated push-pull tab for 40 Gigabit Ethernet (40GbE) ap
-
plications with extended reach up to 300m (400m) using
OM3 (OM4) multimode fiber (MMF) and with added capa
-
bility of inter-operating with IEEE 10GBASE-SR compliant
products. This transceiver is a high performance module
for short-range multi-lane data communication and in
-
terconnect applications. It integrates four data lanes
in each direction with each lane operating at 10.3125
Gbps, giving an aggregated bandwidth of 40 Gbps. This
transceiver can also be used for high density 10 gigabit
Ethernet applications. It allows optical interoperability
up to 300m (400m) using OM3 (OM4) MMF with any 10
gigabit Ethernet (10GbE) transceivers, compliant to the
IEEE 802.3ae 10GBASE-SR specifications, of form factors
such as SFP+, XFP and X2. It provides an effective port
count of over 100 within 1 RU rack. The push-pull tab fa
-
cilitates the insertion and extraction of these transceiv
-
ers in such high density environment. This transceiver
is designated as a QSFP+ eSR4 solution, where the letter
"e" represents extended reach beyond 100m MMF with
interoperability between this QSFP+ transceiver and any
IEEE 10GBASE-SR compliant modules.
The Dell AFCT-739SMZ-FT1 SFP+ transceiver delivers fiber connectivity to extend the range of your network.
This hot-pluggable transceiver with SFP+ (Small Form Factor Pluggable) footprint features a Duplex LC connector. The Dell networking 10GBase LR SFP+ transceiver provides 10GbE connectivity up to 10 km .

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature,
laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.



Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver 0



Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver 1



Technical Strength

Topstar proudly own 5,000 Square Meters complete Dust-Free workshop. Together with our 20 dedicated engineering experts in the R&D, we create excellent products.

Applying the industrial best Management Practice combined with full range of test equipments, we stand to be the expert in Optical Transceiver field.

These expertise enabling us the ability to supply full series of High Quality products;



Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver 2



Organizational Structure&Company Advantages

We also has bridle-wise manage team ,R&D team and QC team ,and can supply customer their desired sample in the earliest date , arrange your order correctly,

strictly control the mass production quality and lead time , and let the business goes smoothly !

Topstar owns Shenzhen Baoan OEM/ODM Factory, Shenzhen Longgang Sales Company, USA San Francisco Office,

Shenzhen warehouse and HONGKONG warehouse to offer the One-Stop souring of high quality product platform for our customers.

Dell RN84N AFCT-739SMZ-FT1 10km 1310nm SFP-10G-LR Gigabit Optical Transceiver 3



FAQ



Q1. Are your Optical Transceivers original?



A1.Yes, all our optical transceivers are guaranteed 100% original!





Q2.How do you guarantee the quality of SFP?



A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.





Q3. What will you do if I found the product has any quality problem?

A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!





Q4. What payment terms do you accept?

A4. T/T, Paypal,Credit card.





Q5. What are the trade terms?



A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)



Payment term: Western Union, T/T, Alipay, Escow, Money Gram



Warranty: 1 Year
