1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable

1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable
1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable

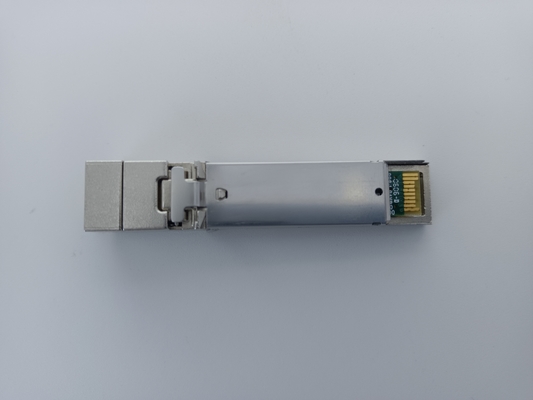

Large Image :  1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable

Product Details:
Place of Origin: Johor, Malaysia
Brand Name: Finisar
Certification: ROHS
Model Number: FCLF-8520/8521-3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: Anti-static package, standard packing
Delivery Time: 3-4 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 800pcs per day

1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable

Description
Data Rate: 1.25G Form-Factor: SFP
Center Wavelength: 850nm Transmission Distance: 300m
Temperature: 0°C To 70°C Connector: Duplex LC Receptacles
Weight: 0.34g Warranty: 1 Years
Highlight:

COPPER SFP Optical Transceiver

,

1000BASE-T SFP Optical Transceiver

,

FCLF-8520/8521-3 Finisar Optical Transceiver

Finisar FCLF-8520/8521-3 1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable



1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 0




Finisar’s FCLF-8520/8521-3 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA)1 . They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.32 . The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The FCLF-8520-3 uses the SFP’s RX_LOS pin for link indication, and 1000BASE-X autonegotiation should be disabled on the host system. The FCLF-8521-3 is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded). See AN-2036 (“Frequently Asked Questions Regarding Finisar’s 1000BASE-T SFPs”) for a more complete explanation on the differences between the two models and details on applications issues for the products.

The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details5,6.






PRODUCT FEATURES



Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range -0°C to +85°C
Fully metallic enclosure for low EMI
Low power dissipation (1.05W typical)
Compact RJ-45 connector assembly
RoHS-6 compliant (lead-free)
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface



APPLICATIONS


10GBASE-SR/SW 10G Ethernet

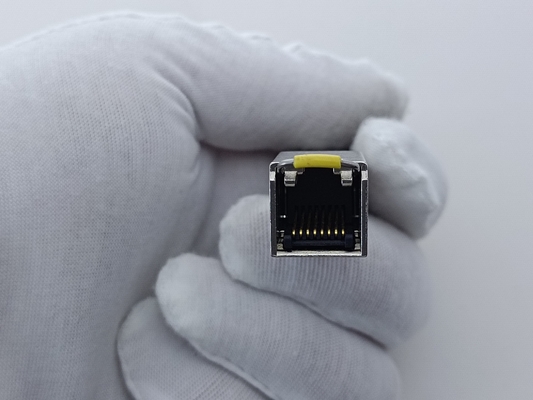

1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 1

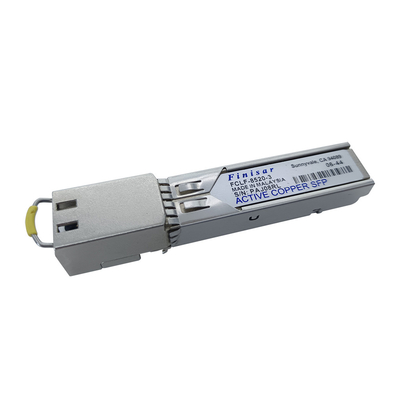

1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 2

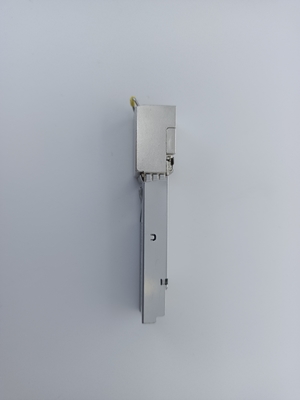

1000BASE-T COPPER SFP Optical Transceiver For 1.25 Gigabit Ethernet Over Cat 5 Cable 3





FAQ



1. Are your Optical Transceivers original?

Yes, all our optical transceivers are guaranteed 100% original!



2. What will you do if I found the product has any quality problem?

We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!



3. What did your company do in terms of quality control?

We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.



4. What are the trade terms?

Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Aliexpress Escow, Money Gram

Warranty: 1 Year



5. Do you have compatible ones?

Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
