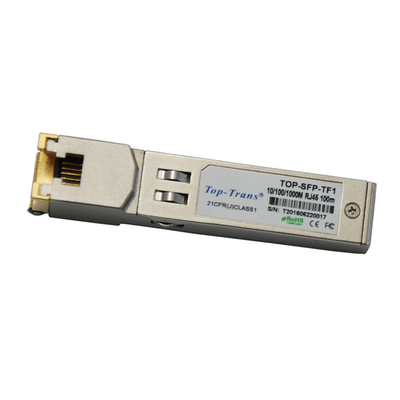

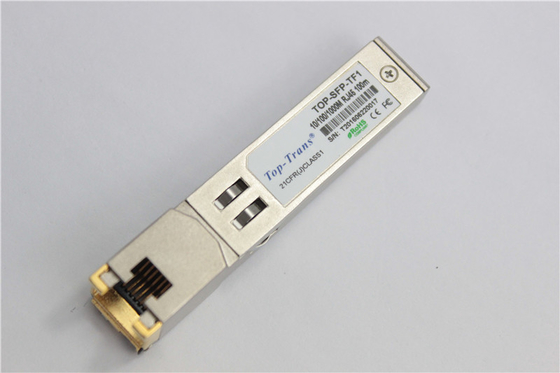

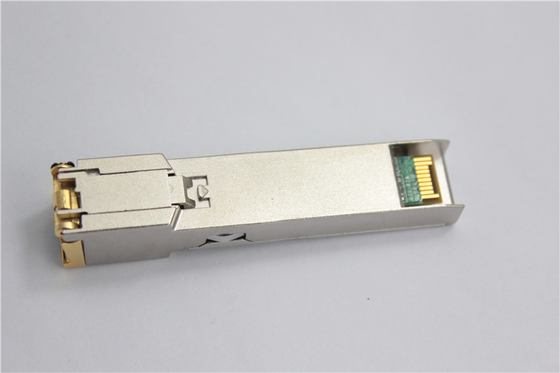

Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module

Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module
Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module

Large Image :  Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: Top-Trans
Certification: ISO9001, ROHS, CE, FCC
Model Number: TSFP-1.25G-TF1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: SFP Blister Box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3000pcs per month
Contact Now

Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module

Description
Data Rate: 10/100/1000Mbps Factor Form: SFP
Function: Gigabit Ethernet SFP Port To Copper RJ45 Max Transmission: 100m On Cat5/Cat5e Cable
Temperature: 0°C~70°C Commercial Weight: 25 Grams
Power Consumption: <1.2W Compatible: Arista SFP-1G-T
Connector: RJ45

Juniper SRX-SFP-1GE-T-ET Compatible Copper RJ45 SFP 100m Cat5 Converter Module



Description Of Fiber Optic Transceiver



The TSFP-1.25G-TF1 is a small form-factor pluggable (SFP) transceiver module that supports Gigabit Ethernet transmission over copper cabling. It is an ideal choice for enterprise LAN (Local Area Network) applications that require high-speed and reliable connectivity over copper cabling.



The TSFP-1.25G-TF1 is designed to work with Juniper EX Series Ethernet switches and other networking equipment that support SFP transceivers, providing enterprise customers with a flexible and scalable networking solution. Its compact design and hot-swapping capabilities make it easy to install and replace, minimizing downtime and reducing operational costs.



Overall, the TSFP-1.25G-TF1 is a high-performance and reliable solution for enterprise LAN applications. Its compatibility with Juniper EX Series Ethernet switches and other networking equipment that support SFP transceivers, DDM feature, and cost-effective copper cabling support make it an ideal choice for connecting devices within a LAN.





Specification Of Fiber Optic Transceiver





Data Speed

10/100/1000Mbps

Interface

SFP port

Connector

RJ45

Transmission

100m on Cat5/Cat5e

Lower Power Dispation

1.2W max
ROHS compliant Yes, Support
Lead Free Yes, Support





Feature Of Fiber Optic Transceiver





  • Up to 1.25Gb/s bi-directional data links

  • Hot-pluggable SFP footprint

  • Extended case temperature range (0°C to +85°C )

  • Fully metallic enclosure for low EMI

  • Low power dissipation (1.05 W typical)

  • Compact RJ-45 connector assembly

  • Access to physical layer IC via 2-wire serial bus

  • 1000 BASE-T operation in host systems with SERDES interface

  • 10/100/1000Mbps compliant in host systems with SGMII interface

  • 1Gigabit Ethernet over Cat 5 cable





Application of Fiber Optic Transceiver





  • Gigabit Ethernet

  • Enterprise, Data Center, Security Network

​



SFP Transceiver List





Model Wavelength Distance Fiber Type Connector
TSFP-1.25G-MMD SX - 850nm 550m MMF LC Duplex
TSFP-1.25G-SMD LX - 1310NM 10km SMF LC Duplex
TSFP-1.25G-20D LH - 1310NM 20km SMF LC Duplex
TSFP-1.25G-40D EX - 1310nm 40km SMF LC Duplex
TSFP-1.25G-60D EX60, 1310nm 60km SMF LC Duplex
TSFP-1.25G-80D ZX, 1550nm 80km SMF LC Duplex
TSFP-1.25G-100D ZX100, 1550nm 100km SMF LC Duplex
TSFP-1.25G-120D ZX120, 1550nm 120km SMF LC Duplex
TSFP-1.25G-160D

ZX160, 1550nm

 160km SMF LC Duplex
TBD-1.25G-10A/B LX - 1310/1550nm BIDI 10km SMF LC Simplex
TBD-1.25G-20A/B LH - 1310/1550nm BIDI 20km SMF LC Simplex
TBD-1.25G-40A/B EX - 1310/1550nm BIDI 40km SMF LC Simplex
TBD-1.25G-60A/B EX60 - 1310/1550nm BIDI 60km SMF LC Simplex
TBD-1.25G-80A/B ZX - 1490/1550nm BIDI 80km SMF LC Simplex
TBD-1.25G-100A/B ZX100 - 1490/1550nm BIDI 100km SMF LC Simplex
TBD-1.25G-120A/B ZX120 - 1490/1550nm BIDI 120km SMF LC Simplex
TBD-1.25G-160A/B ZX160 - 1490/1550nm BIDI 160km SMF LC Simplex
TCM-1.25G-20-XX LX/LH -  1271-1611nm CWDM 10-20km SMF LC Duplex
TCM-1.25G-40-XX EX - 1271-1611nm CWDM 40km SMF LC Duplex
TCM-1.25G-80-XX ZX - 1271-1611nm CWDM 80km SMF LC Duplex
TCM-1.25G-120-XX ZX120 - 1271-1611nm CWDM 120km SMF LC Duplex
TCM-1.25G-160-XX ZX160 - 1271-1611nm CWDM 160km SMF LC Duplex
TDM-1.25G-40-XX EX - C Band ITU DWDM 40km SMF LC Duplex
TDM-1.25G-80-XX ZX - C Band ITU DWDM 80km SMF LC Duplex
TDM-1.25G-120-XX ZX120 - C Band ITU DWDM 120km SMF LC Duplex
TDM-1.25G-160-XX ZX160 - C Band ITU DWDM 160km SMF LC Duplex
155M/622M 850-1550nm/BIDI 0.55-160km MMF/SMF LC
2.5G 850-1550nm/BIDI/XWDM 0.3 -120km MMF/SMF LC
6.25G 850-1550nm 0.3 - 20km MMF/SMF LC
4.5G/8.5G 850-1550nm/CWDM 0.5 - 40km MMF/SMF LC





FAQ



  • Can I use your Copper RJ45 SFP with other RJ45 equipment?



          Yes, It can interoperate with other RJ45 equipment via Cat5/Cat5e cable.



  • What's your optic warranty terms?

​

          1 year free replace, 3 years free repairment for non-human made hardware defects
