Brocade 57-0000076-01 FC SFP Transceiver XBR-000182 10GBASE-LR SFP+ 1310nm 10G LWL Optical Module
Brocade 10Gb/s LWL FC SFP+ Transceiver Specifications
Brocade 10 Gbps LRSFPs are hotswappable, low-voltage (3.3 V) digital diagnostic Ethernet optical transceivers that support high-speed serial links over single-mode optical fiber at signaling rates up to 10.5 Gbps. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-4) for LC duplex transceivers.
End-to-End Compatibility and Reliability
Brocade 10 Gbps LR Ethernet optical transceivers support highly reliable operations in data center networks and are optimized for Brocade switching platforms. They undergo rigorous qualification and certification testing to provide an end-to-end solution that is easier to maintain—helping improve the availability of data center networks supporting mission-critical applications.
The Brocade 10 Gbps LR Ethernet optical transceiver is a 1310 nm SFP that complies with 10GBASE-LR specifications.
Highlights include:
• 1310 nm DFB laser
• Optical interface specifications per IEEE 802.3ae 10GBASE-LR
• Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,”
providing real-time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Industry-standard LCduplex connector
• 10 km link lengths on 9 μm singlemode fiber
• IEC60825-1 Class 1/CDRH Class 1 laser eye safe
• Compliance with Restriction on Hazardous Substances (RoHS) directive
Parameters for the 10Gb/s LWL FC SFP+ Transceiver Module:
| Performance | FCoE: 10.5 Gbps line speed, full duplex |
| Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Long Range (LR) |
| Operating Parameters |
Transmit (Tx): Wavelength: 1260 to 1355 nm Average power: -8.2 to +0.5 dBm RIN: -128 dB/Hz max Optical return loss: -12 dB max OMA: -5.2 dBm min
Receive (Rx): Wavelength: 1260 to 1355 nm Average power: -14.2 dBm to +0.5 dBm Optical return loss: -12 dB Unstressed sensitivity: 55 μW, -12.6 dBm SRS OMA: 93 μW, -10.3 dBm 3 dB cutoff maximum: 12.3 GHz |
| Size |
Width: 14.80 mm (0.58 inches) Height: 12.40 mm (0.49 inches) Depth: 56.70 mm (2.23 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 1.25W |

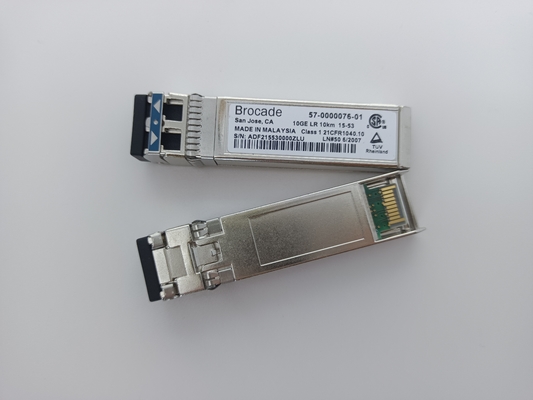

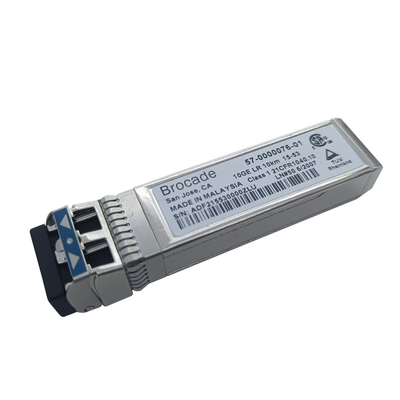

Photo for Brocade 10Gb/s LWL FC SFP+ Transceiver
