Product Details:
|
| Center Wavelength: | 1260 To 1355 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | FCoE: 10.5 Gbps Line Speed, Full Duplex |
| Cable Type: | SMF | Cable Distance: | 10km |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
Brocade 57-1000493-01 XBR-000217 10G Fibre Channel SFP+ Transceiver 10G LWL 1310nm 10km LC SMF Module
Brocade 10Gb/s LWL FC SFP+ Transceiver Specifications
Brocade 10Gbps LR Optical Transceiver is Optimized, Certified Optical Transceivers for Extending Data Center Networks;
The Brocade® 10 Gbps Long Range (LR) Ethernet optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 10 Gbps Fibre Channel over Ethernet (FCoE)/ Converged Enhanced Ethernet (CEE) switches, Converged Network Adapter (CNA) products, and 10 Gigabit Ethernet (GbE) switches and routers. Together, these optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
Highlights
• Provides high system reliability based on rigorous qualification and certification testing
• Leverages unique design parameters to provide the highest performance with industry-leading Brocade solutions, supporting business continuity
• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs
• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility
• Optimizes connectivity with Brocade platforms to enable maximum cable distance
Parameters for the 10Gb/s LWL FC SFP+ Transceiver Module:
| Performance | FCoE: 10.5 Gbps line speed, full duplex |
| Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Long Range (LR) |
| Operating Parameters |
Transmit (Tx): Wavelength: 1260 to 1355 nm Average power: -8.2 to +0.5 dBm RIN: -128 dB/Hz max Optical return loss: -12 dB max OMA: -5.2 dBm min
Receive (Rx): Wavelength: 1260 to 1355 nm Average power: -14.2 dBm to +0.5 dBm Optical return loss: -12 dB Unstressed sensitivity: 55 μW, -12.6 dBm SRS OMA: 93 μW, -10.3 dBm 3 dB cutoff maximum: 12.3 GHz |
| Size |
Width: 14.80 mm (0.58 inches) Height: 12.40 mm (0.49 inches) Depth: 56.70 mm (2.23 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 1.25W |

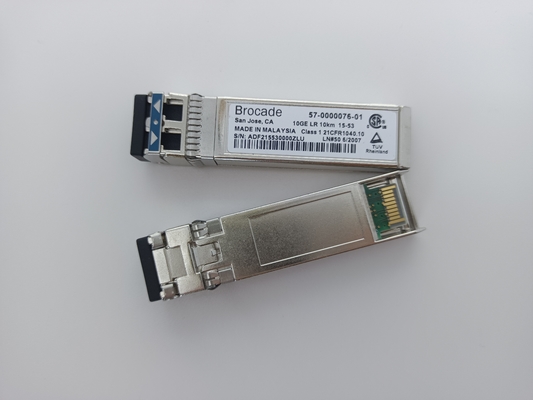

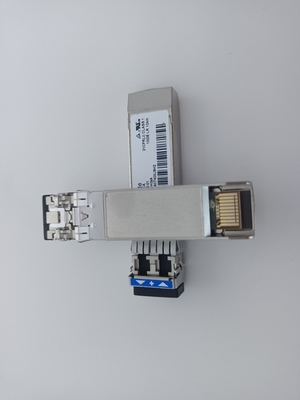

Photo for Brocade 10Gb/s LWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 10Gb/s LWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 10G LWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
