Product Details:
|
| Form Factor: | QSFP28 | Wavelength: | 850 Nm |
|---|---|---|---|
| Data Rate: | 100G | Reach: | 100M |
| Connector Type: | LC | Power Consumption: | 3.5W |
| DDMI: | Yes | Cable Type: | Multimode |
| Temperature Range: | 0 To 70°C | Warranty: | 1 Year |
| Highlight: | Avago AFBR-89BDDZ Fiber Optics Module,LC MMF Fiber Optics Module,Gigabit Ethernet 100G QSFP28 Module |
||

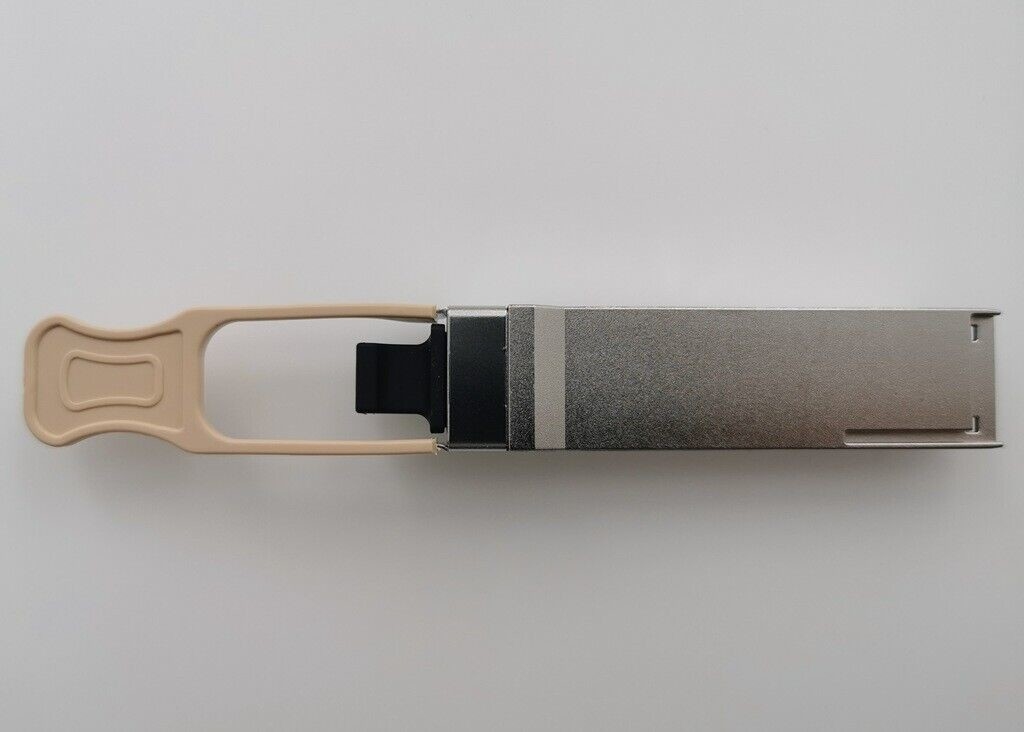

Avago AFBR-89BDDZ QSFP28 Pluggable 100 Gigabit Ethernet L MMF Fiber-Optics Module
| Rate | 100G |
| Distance | 100 M |
| Media Type | Multimode Mode Fiber |
| Form Factor | QSFP28 |
| Power Consumption | <3.5W |
| Power Supply | 3.3V |
| Connector Type | LC |
| Temperature Range | 0 to 70°C |
The Avago Technologies AFBR-89CDDZ is a Four-Channel, Pluggable, Multi-mode, Fiber-Optic QSFP28 transceiver for 100 Gigabit Ethernet
Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It
integrates four data lanes in each direction with each lane operating at 25.78125 Gbps, giving an aggregated bandwidth of 103.125 Gbps. It
allows optical interoperability up to 100m over an 8-fi ber (or 12-fi ber) MPO optical multi-mode OM4 cable. The pull tab facilitates the insertion
and extraction of these transceivers in high density environment. Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE
CAUI4 interface with 802.3 Clause 91 RS-FEC.
