Product Details:
|
| Form Factor: | QSFp+ | Wavelength: | 850nm/900nm |
|---|---|---|---|
| Data Rate: | 40G | Reach: | 150 M |
| Connector Type: | LC | Cable Type: | Multimode Mode Fiber |
| Temperature Range: | 0 To 70°C | Warranty: | 1 Year |
| Highlight: | SR QSFP+ Transceiver Module,Bidirectional MMF QSFP+ Transceiver Module,AFBR-79EBPZ 40G QSFP+ Transceiver |
||
40G Bidirectional MMF QSFP+ Transceiver Module AFBR-79EBPZ QSFP+ SR Bi-Directional MMF
Feature :
Form Factor: QSFP
TX Wavelength: 850nm/900nm
Reach: 100m
Cable Type: MMF
Rate Category: 40GBase
Interface Type: SR-BD
DDM: Yes
Connector Type: Dual-LC
Optical Power Budget: 7.0 dB
TX Power Min/Max: -4.00 to +2.50 dBm
RX Power Min/Max: -11.00 to +0.50 dBm
| Rate | 40G |
| Distance | 100 M |
| Media Type | Multimode Mode Fiber |
| Form Factor | QSFP+ |
| Power Consumption | 3.5W |
| Interface Type: | SR-BD |
| Connector Type | Dual-LC |
| Temperature Range | 0 to 70°C |

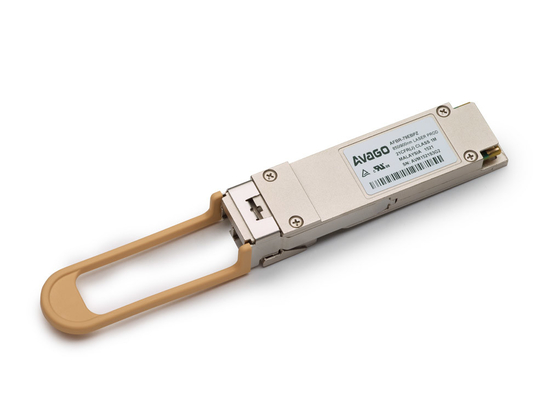

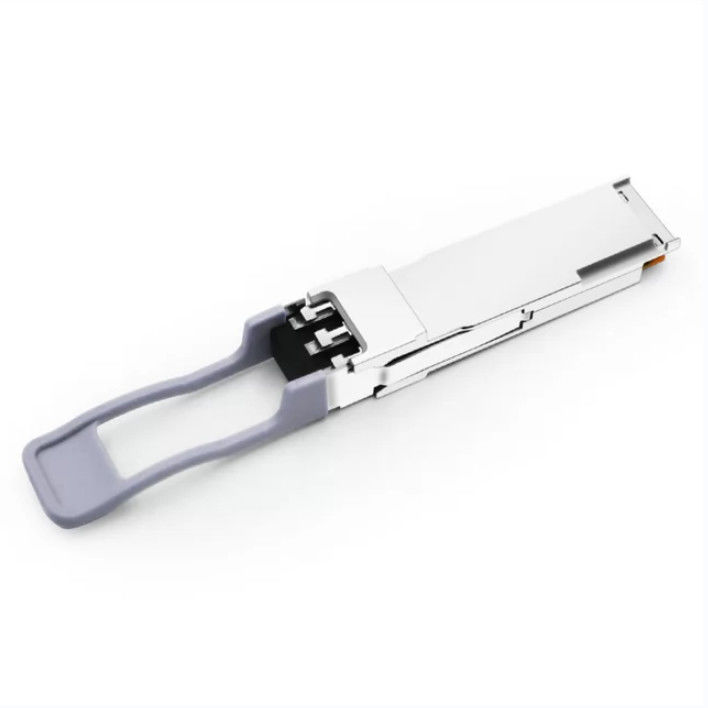

The Avago AFBR-79EBPZ is a 40 Gigabit Ethernet (40G) bidirectional (BiDi) multimode fiber (MMF) QSFP+ transceiver
module designed for high-speed data center interconnect and enterprise networking applications. Based on
proprietary 2x20G BiDi optics, the module enables four Tx and four Rx 10G electrical data lanes to transmit over a 2-
fiber LC duplex cable, providing a cost-effective upgrade path from 10G to 40G Ethernet leveraging existing 10G MMF
cabling infrastructure.
