Product Details:
|
| Form Factor: | QSFP28 | Wavelength: | 850nm |
|---|---|---|---|
| Data Rate: | 100G | Reach: | 100 M |
| Connector Type: | LC | Cable Type: | Multimode Mode Fiber |
| Temperature Range: | 0 To 70°C | Warranty: | 1 Year |
| Power Supply: | 3.3V | Transceiver Power Consumption: | 2.5W |
| Highlight: | AFBR-89CDHZ Fiber Optic Module,QSFP28 100G Multimode Fiber Transceiver,850Nm 100G QSFP28 Module |
||

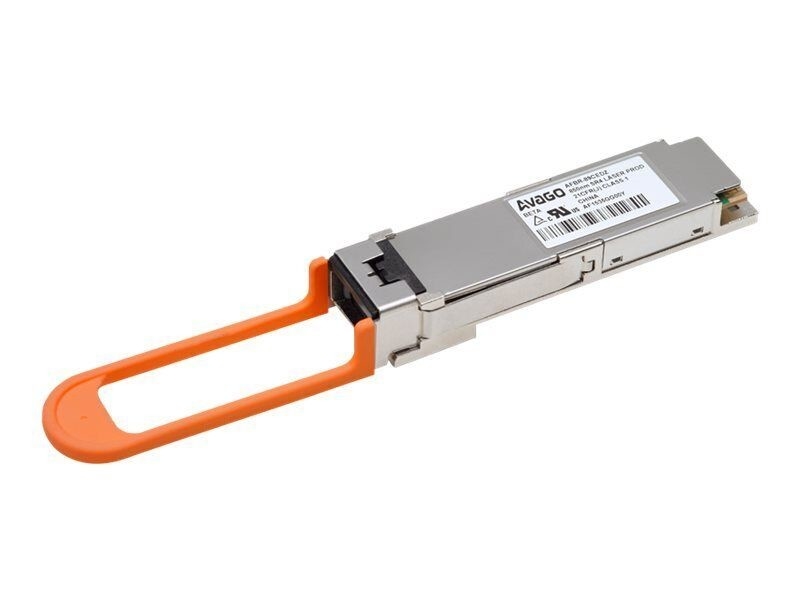

AFBR-89CDHZ QSFP28 100G 850 Nm Fiber-Optic Module Multimode Mode Fiber Transceiver
Feature :
Compliant to 100 GbE electrical and optical specifications 802.3bm (Annex 83E CAUI-4 with Clause 91 RS-FEC, Clause 95 100GBASE-SR4)
100GbE Link Distances 100m OM4, 70m OM3
QSFP28 MSA specification compliant, including new functions per SFF-8636 Rev 2.9
Class 1 eye safety
Push-pull tab: ease of transceiver insertion and extraction
Operates at 25.78125 Gb/s per channel with 256b/257b coded data
0 to +70°C case temperature operating range
Proven high reliability 850 nm technology: Broadcom VCSEL transmitter and Broadcom PIN detector
Hot pluggable QSFP28 transceiver for ease of installation and servicing
Two-wire serial (TWS) interface with digital monitoring and maskable interrupts for expanded functionality
Applications
100 GbE interconnects
Datacom/Telecom switch and router connections
Data aggregation and backplane applications
Proprietary protocol and density applications
| Rate | 100G |
| Distance | 100 M |
| Media Type | Multimode Mode Fiber |
| Form Factor | QSFP28 |
| Power Consumption | 2.5W |
| Power Supply | 3.3V |
| Connector Type | Dual-LC |
| Temperature Range | 0 to 70°C |
| Extinction Ratio | 2dB |
The Broadcom® AFBR-89CDHZ is a four-channel, pluggable, multimode, fiber optic QSFP28 transceiver for 100 Gigabit
Ethernet (GbE) applications. The transceiver is a high-performance module for short-range multilane data communication and
interconnect applications. It integrates four data lanes in each direction with each lane operating at 25.78125 Gb/s, giving an
aggregated bandwidth of 103.125 Gb/s. It allows optical interoperability up to 100m over an 8-fiber (or 12-fiber) MPO optical
multimode OM4 cable. The push-pull tab facilitates the insertion and extraction of these transceivers in high density
environment. Each electrical lane operates at 25.78125 Gb/s and conforms to the 100 GbE CAUI4 interface with 802.3 Clause
91 RS-FEC.
