Product Details:
|
| Data Rate: | 100G | Form-Factor: | QSFP28 |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 2km |
| Temperature: | 0°C To 70°C | Connector: | LC |
| Weight: | 0.34g | Warranty: | 1 Years |
| Highlight: | 2km Optical Transceiver Module,100G CWDM4 Optical Transceiver Module,FTLC1157RGPL6-FB Finisar Optical Transceiver |
||

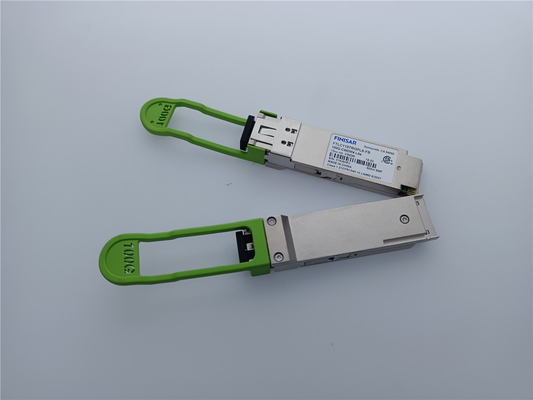

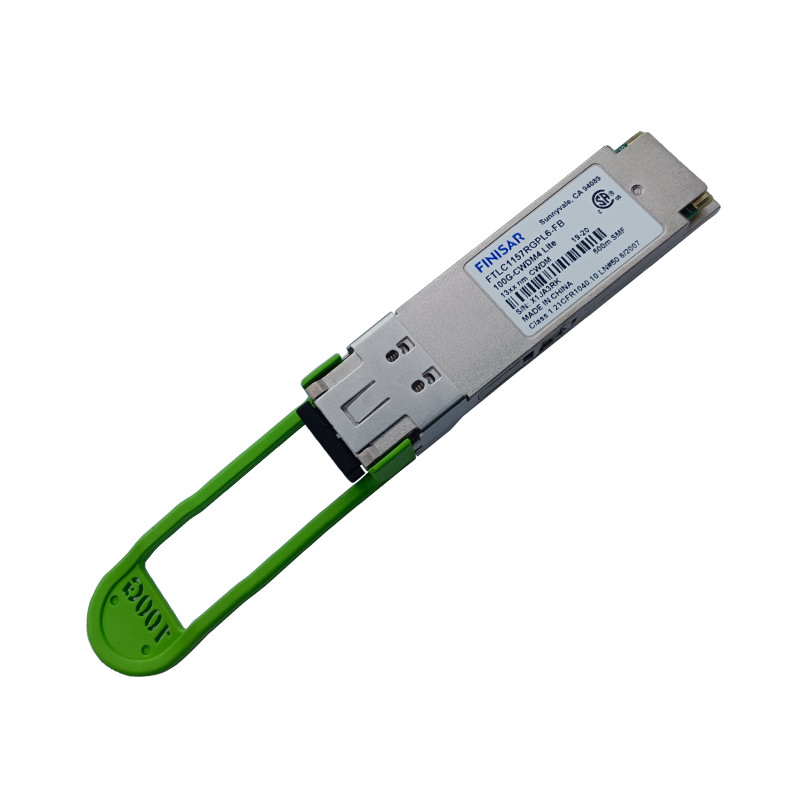

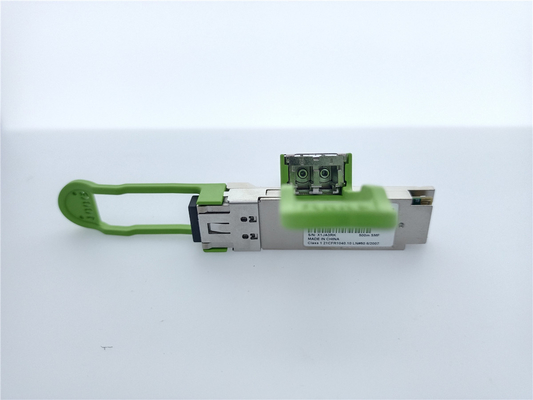

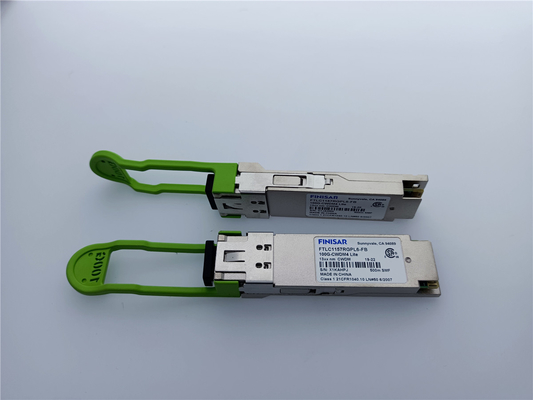

Original Finisar FTLC1157RGPL6-FB 2km 100G CWDM4 QSFP28 Optical Transceiver Module 100G CWDM4 applications with FEC
Parameters
| Fiber Type |
2km 100G CWDM4 QSFP28 |
| Connector | LC |
| Lasers and TIA | VCSEL |
| Tx Power | -9~2.4 dBm |
| Rx Sensitivity | -4.7dBm |
| Extinction Ratio | 3 dB |
| Power Consumption | <2.5W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
1 Hot-pluggable QSFP28 form factor
2 Supports 103.1Gb/s aggregate bit rate
3 Power dissipation < 3.5W
4 RoHS-6 compliant
5 Commercial case temperature range of 0°C to +70°C
6 Adaptive CTLE
7 Single 3.3V power supply
8 Loss budget of 5 dB on up to 2 km of Single Mode Fiber (SMF) [with KR4 FEC]
9 4x25Gb/s CWDM transmitter
10 4x25G retimed electrical interface
11 Duplex LC receptacles
12 I2C management interface
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
