Product Details:
|
| Center Wavelength: | 1271/1291/1311/1331nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | 40Gb/s Line Speed, Full Duplex |
| Cable Type: | SMF | Cable Distance: | 10km |
| Connector: | Industry-standard Duplex LC Connector | Compliant: | CDRH Class 1 |
| Pull Color: | Blue | ||
| Highlight: | Brocade FC SFP Transceiver,10km 40G-QSFP-LR4,SMF 40G-QSFP-LR4 |
||
Brocade 57-1000263-01 FC SFP Transceiver 40G 1310nm 10km SMF LC 40G-QSFP-LR4 Module
Brocade 40GBase-LR4 Single-Mode Fibre FC SFP Transceiver Specification
The Brocade 40G-QSFP-LR4 40GBASE-LR4 40G Ethernet transceiver is a Duplex QSFP+ transceiver for optical communications, rated for distances up to 10 km and a maximum bandwidth of 40Gbps. The 40G-QSFP-LR4 transceiver operates at 1310nm wavelength. Brocade Ethernet 40GBase-LR4 QSFP+, QSFP+ transceiver module, 40Gb/s, LC Singlemode, 1310 nm, Maximum Distance: 10 km, Digital Optical Monitoring (DOM) support
Application
Brocade Extension SX6/7840 Switches
Ordering Part Number
40G-QSFP-LR4
Parameters for the 40GBase-LR4 SMF FC SFP Transceiver Module:
| Performance | 40Gb/s line speed, full duplex |
| Media | Hot-pluggable, industry-standard QSFP, LC connector |
| Operating Parameters |
Transmit (Tx): • Wavelength: 1271/1291/1311/1331nm
Receive (Rx): • Wavelength: 1271/1291/1311/1331nm |
| Size |
Width: 18.35 mm (0.72 in.) Height: 13.25 mm (0.52 in.) Depth: 71.0 mm (2.79 in.) |
| Operation Power | Maximum 3.5W |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
Brocade 40G-QSFP-LR4 57-1000263-01 optical transceiver module with its advanced technology and superior performance capabilities, is designed to meet the demands of today's most bandwidth-intensive applications. Whether you're streaming high-definition video, transferring large files or running complex data analytics, this module delivers lightning-fast speeds with unparalleled reliability.
Featuring a QSFP form factor and long-reach design, this module enables seamless connectivity over multimode fiber at distances of up to 10km. Its four-channel design allows for efficient use of fiber optic cables, minimizing costs while maximizing performance.
And with its hot-swappable design, you can easily install, remove or replace this module without disrupting your network operations. Plus, its low power consumption and compact size make it an ideal choice for data centers and other space-constrained environments.
So why wait? Upgrade your network infrastructure today with the Brocade 40G-QSFP-LR4 57-1000263-01 optical transceiver module and experience the ultimate in speed, reliability and performance!

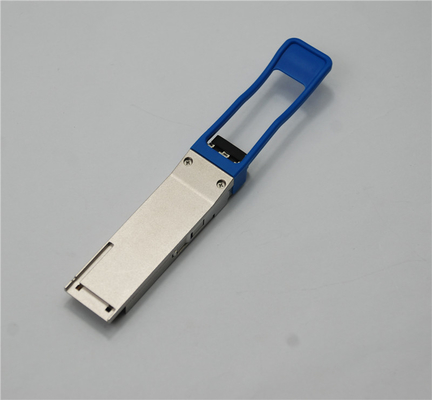

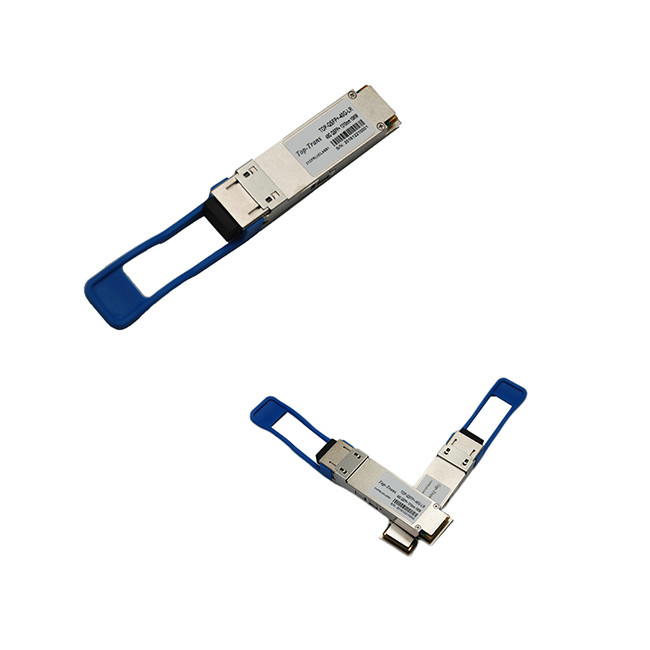

Photo for Brocade 40GBase-LR4 SMF FC SFP Transceiver
FAQ
Q1. Except for this Brocade 40Gb/s LR 10km FC QSFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 40G 10km FC QSFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copied brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
