Product Details:
|
| Center Wavelength: | 850nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | 40Gb/s Line Speed, Full Duplex |
| Cable Type: | MMF | Cable Distance: | 300Meters |
| Connector: | Industry-standard MPO Connector | Compliant: | CDRH Class 1 |
| Pull Color: | Black | ||
| Highlight: | MPO Male Connector FC SFP Transceiver,12 Fibers FC SFP Transceiver,40G ESR4 QSFP FC SFP Transceiver |
||
Brocade 57-1000296-01 FC SFP Transceiver 40G eSR4 QSFP 300m with 12 Fibers MPO Male connector
Brocade 40G eSR 300m FC SFP Transceiver Specification
The Brocade 40GBASE-SR4 QSFP+ Optic Transceiver Module 57-1000296-01 adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 300m over OM4 MMF (100m over OM3). Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.
The Brocade 57-1000296-01 40G CSR4 QSFP optical transceiver is designed to meet the rigorous demands of modern data centers, delivering unparalleled performance and reliability. It supports multiple protocols and data rates up to 40 Gbps, making it an ideal choice for high-bandwidth applications such as video streaming, data backup, and cloud computing.
This optical transceiver also features low power consumption, reducing energy costs and minimizing the environmental impact of your data center operations. And with its hot-swappable design, you can replace or upgrade the transceiver without shutting down your network, ensuring uninterrupted service and maximum uptime.
Upgrade your data center with the Brocade 57-1000296-01 40G CSR4 QSFP 300m optical transceiver, the ultimate networking solution for high-speed data transmission and reliable performance.
Application
Brocade ICX 7450
Brocade MLXe
Brocade ICX 6650
Brocade ICX 7750
Brocade FC32-64
Brocade SX6
Brocade 7840
Ordering Part Number
40G-QSFP-eSR4
Parameters for the 40G eSR 300m FC SFP Transceiver Module:
| Performance | 40Gb/s line speed, full duplex |
| Media | Hot-pluggable, industry-standard QSFP, LC connector |
| Operating Parameters |
Transmit (Tx): • Wavelength: 850nm • Average power: –4.0 dBm to +5.0dBm per channel
Receive (Rx): • Wavelength: 850nm • Unstressed sensitivity: −6 dBm |
| Connector | MTP/MPO-12 Male |
| Size |
Width: 18.35 mm (0.72 in.) Height: 13.25 mm (0.52 in.) Depth: 71.0 mm (2.79 in.) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |

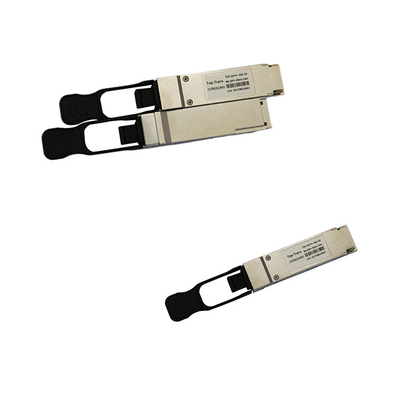

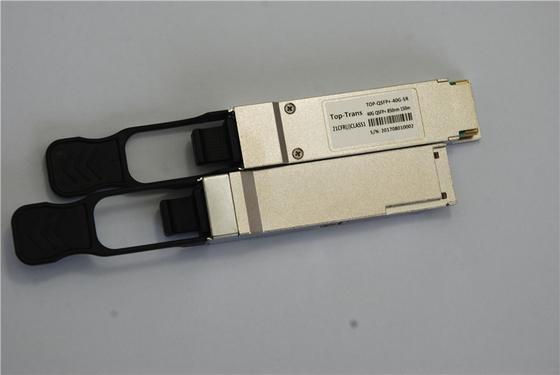

Photo for Brocade 40G eSR 300m FC SFP Transceiver
FAQ
Q1. Except for this Brocade 40G eSR 300m FC SFP Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 40G 100m FC QSFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copied brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
