Product Details:
|
| Center Wavelength: | 840 To 860nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | Auto-sensing Of 64G, 32G, And 16G Port Speeds. |
| Cable Type: | MMF | Cable Distance: | 100m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
| Highlight: | FC QSFP+ Optical Transceiver,57-1000294-02 FC SFP Transceiver,XBR-000245 FC SFP Transceiver |
||
Brocade 57-1000294-02 FC QSFP+ Optical Transceiver 64G 4x16G SWL XBR-000245 module
Brocade 4x16G SWL FC SFP+Transceiver Specification
Brocade® 4×16 GFC Short Wavelength (SWL) (100 M) Quad Small Form-Factor Pluggables (QSFPs), part of the Brocade family of optical transceivers, are optimized to fully leverage Brocade 16 GFC backbone and switch products. Together, these optical transceivers provide state-of-theart performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
Brocade 4×16 GFC SWL QSFPs are multi-rated 850 nm QSFPs that comply with 14.025 Gbps Fibre Channel specifications. Product highlights include:
• 850 nm multimode VCSEL transmitter
• Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,”
providing real-time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Industry-standard MTP 1×12 ribbon cable connector
• 100 M link length on OM4 fiber
• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
• Compliance with Restriction on Hazardous Substances (RoHS) directive
Brocade XBR-000245 4x16G FC QSFP+ SWL transceiver module - the perfect solution for high-performance data center networks. This powerful module boasts impressive speed and reliability, making it ideal for handling even the most demanding workloads.
With its compact form factor and easy-to-install design, the Brocade XBR-000245 is a must-have for any modern data center. Whether you're building a new network from scratch or upgrading an existing one, this transceiver module is sure to exceed your expectations.
Ordering Part Number
•XBR-000245
Parameters for the 4x16G SWL FC SFP+ Transceiver Module:
| Performance | Fibre Channel: 4×14.025 Gbps line speed, full duplex |
| Media | Hot-pluggable, industry-standard Quad Small Form-Factor Pluggable (QSFP), MTP 1×12 ribbon cable connector, Short Wavelength (SWL) |
| Operating Parameters |
Transmit (Tx): Wavelength: 840 to 860 nm Spectral width: 0.50 nm Average power: −7.6 to +2.4 dBm per channel RIN: −128 dB/Hz max Optical return loss: 12 dB max OMA: −2.5 to +3 dBm per channel
Receive (Rx): Wavelength: 840 to 860 nm Average power: 2.4 dBm max per channel Optical return loss: −12 dB min SRS OMA: −10 dBm max per channel 3 dB cutoff maximum: 18 GHz |
| Size |
Width: 18.35 mm (0.72 in.) Height: 12.67 mm (0.50 in.) Depth: 71.00 mm (2.82 in.) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Power Dissipation | 1.5W |

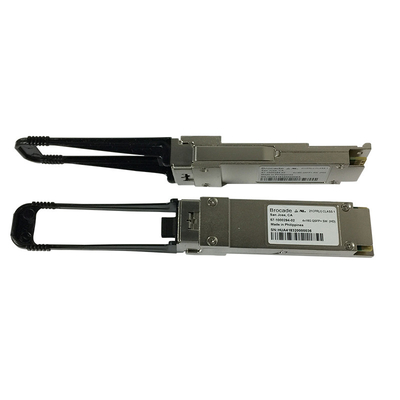

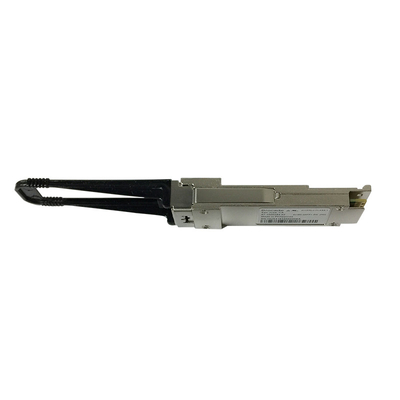

Photo for Brocade 4x16G SWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 4x16G SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 4x16G 100M FC SFP Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
