Brocade 57-0000088-01 SFP+ Optical Module 16G Multi Mode Fiber Channel Transceiver
Brocade 57-0000088-01 16Gb/s SWL FC SFP+ Transceiver Specifications
Brocade 16 Gbit/sec SWL SFPs are hot-swappable, low-voltage (3.3 V) digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 8.5 Gbit/sec. They comply with SFP+ mechanical (SFF-8432), optical, and electrical specifications (FC-PI-4) for LC duplex transceivers.
The Brocade 16 Gbit/sec SWL optical transceiver is a multi-rated 850 nm SFP that complies with 8.5/4.25/2.125 Gbit/ sec Fibre Channel specifications.
Product Brocade 57-0000088-01 16Gb/s highlights include:
• 850 nm multimode VCSEL transmitter
• FC-PI-4 compliance for 8.5/4.25/2.125 Gbit/sec operation
• Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,”
providing real-time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Industry-standard LC duplex connector
• 150 m link lengths at 8.5 Gbit/secon OM3 fiber
• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
• Compliance with Restriction on Hazardous Substances (RoHS) directive
Parameters for the 16Gb/s SWL FC SFP+ Transceiver Module:
| Performance | Fibre Channel: 2.125, 4.250, and 8.5 Gbit/sec line speed, full duplex; auto-sensing of 2, 4, and 8 Gbit/sec port speeds |
| Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short Wavelength (SWL) |
| Operating Parameters |
Transmit (Tx): Wavelength: 840 to 860 nm Spectral width: 0.65 nm Average power: -8 dBm RIN: -128 dB/Hz max Optical return loss: -12 dB minimum OMA: 302 μW, -5.2 dBm
Receive (Rx): Wavelength: 770 to 860 nm Average power: 0 dBm Optical return loss: -12 dB Unstressed sensitivity: 76 μW, -11.2 dBm SRS OMA: 148 μW, -8.3 dBm 3 dB cutoff maximum: 12 GHz |
| Operating distances |
OM1 62.5 μm (200-500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 150 m 2.10 dB 4 Gbit/sec Fibre Channel 0.5 to 70 m 1.78 dB 8 Gbit/sec Fibre Channel 0.5 to 21 m 1.58 dB
OM2 50 μm (500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 300 m 2.62 dB 4 Gbit/sec Fibre Channel 0.5 to 150 m 2.06 dB 8 Gbit/sec Fibre Channel 0.5 to 50 m 1.68 dB
OM3 50 μm (1500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 500 m 3.31 dB 4 Gbit/sec Fibre Channel 0.5 to 380 m 2.88 dB 8 Gbit/sec Fibre Channel 0.5 to 150 m 2.04 dB |
| Size |
Width: 14.00 mm (0.55 inches) Height: 12.40 mm (0.49 inches) Depth: 57.50 mm (2.26 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 0.8W |

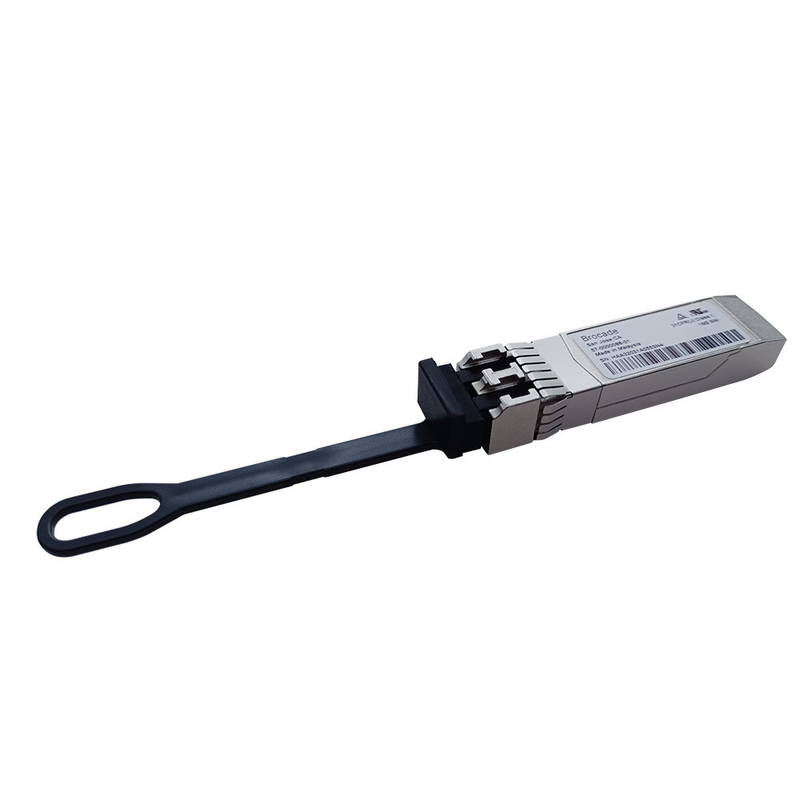

Photo for Brocade 16Gb/s 57-0000088-01 SWL FC SFP+ Transceiver
