Product Details:
|
| Center Wavelength: | 840-860 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | Auto-sensing Of 2, 4, And 8 Gbit/sec Port Speeds |
| Cable Type: | MMF | Cable Distance: | 150m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |

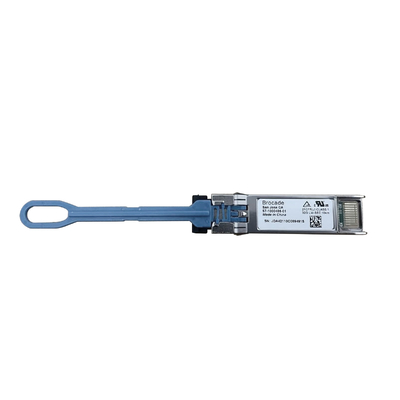

Brocade 57-1000486-01 XBR-000438 32G SMF LWL - 10 km SFP+ optical transceiver module for G720 SAN Switch
Product Description:
Brocade 57-1000486-01 XBR-000438 32G SMF LWL - 10 km SFP+ Optical Transceiver
The Brocade 57-1000486-01 XBR-000438 is a high-performance 32G SFP+ (Small Form-factor Pluggable Plus) Long Wavelength (LWL) Optical Transceiver designed for high-speed data communications. This state-of-the-art module is perfect for data centers, storage area networks, and enterprise applications where high data rates, long distances, and reliable connectivity are required.
The module operates at a wavelength of 1310nm and is designed for single-mode fiber (SMF), providing a remarkable reach of up to 10 kilometers. This makes it an excellent solution for applications that require data transmission over extended distances, such as connections between different buildings or sites.
The Brocade 57-1000486-01 complies with the SFP+ MSA (Multi-Source Agreement), guaranteeing its compatibility with a vast range of networking equipment. It supports Fibre Channel protocols, which is ideal for high-speed storage area networks and applications that demand high bandwidth and low latency.
One of the key features of this optical transceiver is its hot-pluggable interface, which allows for easy installation and replacement without interrupting the network operation. This attribute significantly enhances network maintenance and upgradability. The module also integrates a duplex LC connector, ensuring stable and reliable connectivity.
Key Features:
In summary, the Brocade 57-1000486-01 XBR-000438 32G SMF LWL - 10 km SFP+ Optical Transceiver delivers exceptional speed, compatibility, and range. It's an excellent choice for organizations seeking to enhance their network's performance and reliability over long distances.
Parameters for the 16Gb/s SWL FC SFP+ Transceiver Module:
| Performance | Fibre Channel: 2.125, 4.250, and 8.5 Gbit/sec line speed, full duplex; auto-sensing of 2, 4, and 8 Gbit/sec port speeds |
| Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short Wavelength (SWL) |
| Operating Parameters |
Transmit (Tx): Wavelength: 840 to 860 nm Spectral width: 0.65 nm Average power: -8 dBm RIN: -128 dB/Hz max Optical return loss: -12 dB minimum OMA: 302 μW, -5.2 dBm
Receive (Rx): Wavelength: 770 to 860 nm Average power: 0 dBm Optical return loss: -12 dB Unstressed sensitivity: 76 μW, -11.2 dBm SRS OMA: 148 μW, -8.3 dBm 3 dB cutoff maximum: 12 GHz |
| Operating distances |
OM1 62.5 μm (200-500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 150 m 2.10 dB 4 Gbit/sec Fibre Channel 0.5 to 70 m 1.78 dB 8 Gbit/sec Fibre Channel 0.5 to 21 m 1.58 dB
OM2 50 μm (500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 300 m 2.62 dB 4 Gbit/sec Fibre Channel 0.5 to 150 m 2.06 dB 8 Gbit/sec Fibre Channel 0.5 to 50 m 1.68 dB
OM3 50 μm (1500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 500 m 3.31 dB 4 Gbit/sec Fibre Channel 0.5 to 380 m 2.88 dB 8 Gbit/sec Fibre Channel 0.5 to 150 m 2.04 dB |
| Size |
Width: 14.00 mm (0.55 inches) Height: 12.40 mm (0.49 inches) Depth: 57.50 mm (2.26 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 0.8W |
Photo for Brocade 16Gb/s 57-0000088-01 SWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 8Gb/s SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 8G SWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
