Product Details:
|
| Data Rate: | QSFP28 100G LR4 | Form-Factor: | Finisar FTLC1154RDPL 100GBASE-LR4 10km |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 10km |
| Temperature: | 0°C To 70°C | Connector: | Duplex LC Receptacles |
| Weight: | 0.34g | Warranty: | 1 Years |

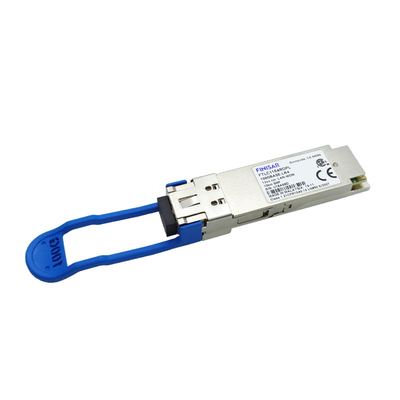

Finisar FTLC1154RDPL QSFP28 100gb/S 100gbase-Lr4 SMF 1310nm 10km Single Mode Optical Transceiver
Parameters
| Fiber Type |
100G Ethernet |
| Connector | Duplex LC receptacles |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -5~-1 dBm |
| Rx Sensitivity | -12 dBm |
| Extinction Ratio | 5.5 dB |
| Power Consumption | 1W |
| Single Power Supply | 3.3 V |
The Finisar FTLC1154RDPL is a high-performance optical module designed for various optical communication applications. This optical module offers advanced features and capabilities, making it suitable for use in a wide range of networking and data center environments.
Key Features:
Form Factor: The FTLC1154RDPL optical module is designed in the QSFP28 form factor, which is a compact and hot-pluggable interface widely used in data center networking equipment.
Data Rate: It supports a high data rate of 100 Gbps, making it ideal for high-speed data transmission in modern networks.
Wavelength: The module operates on a wavelength of 1270 nm to 1330 nm, suitable for both single-mode and multimode fiber applications.
Connector: It features a standard LC duplex connector for easy connectivity with optical fiber cables.
Transmission Distance: The FTLC1154RDPL is optimized for various transmission distances, depending on the type of fiber used. It supports up to 10 km over single-mode fiber and shorter distances over multimode fiber.
Digital Diagnostics (DDM): The module includes digital diagnostics functionality, allowing for real-time monitoring of critical parameters such as optical power, temperature, and voltage.
Hot-Pluggable: It supports hot-pluggable functionality, enabling easy installation and replacement without disrupting network operations.
Low Power Consumption: This optical module is designed for energy efficiency, with low power consumption to reduce operational costs.
Compliance: The FTLC1154RDPL complies with industry standards and specifications, ensuring compatibility with a wide range of networking equipment.
Applications: The Finisar FTLC1154RDPL optical module is suitable for various applications, including:
Data Center Connectivity: It is commonly used for high-speed data transmission within data centers, connecting switches, routers, and servers.
Ethernet Networking: The module is compatible with Ethernet networks and can be used for high-speed Ethernet connections.
Storage Area Networks (SANs): It is suitable for use in SAN environments where high-speed data transfer is required.
Telecommunications: The module can also be used in telecommunications networks for high-speed optical connections.
FAQ OF SFP+
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
