Product Details:
|
| Form-Factor: | OSFP-DD | Data Rate: | 400G |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 500m |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.06KG Per Piece | Warranty: | 3 Years |
| Highlight: | QDD-400G-DR4 Optical Transceiver,SMF MPO-12 Optical Transceiver,400G Optical Modules 500m |
||

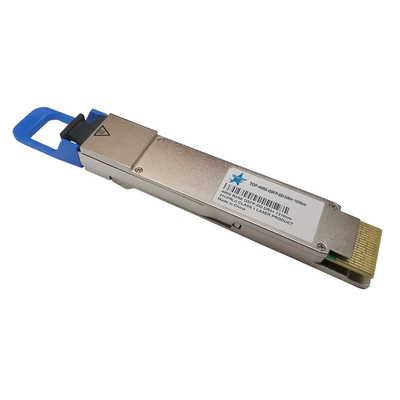

QDD-400G-DR4 400G OSFP-DD DR4 PAM4 500m Parallel SMF MPO-12 Optical Transceiver
The 400G QSFP56-DD DR4 optical module is a type of high-speed transceiver module used in data communication and networking applications. It has a QSFP56-DD form factor, which is a compact and hot-pluggable interface that supports high-speed data transfer over optical fiber cables.
The "DR4" in the module's name stands for "dense wavelength division multiplexing (DWDM) with four channels," meaning that the module has four separate channels for transmitting and receiving data. The module uses four fiber pairs, with each pair transmitting data at a rate of 100 Gbps, resulting in a total bandwidth of 400 Gbps.
This type of module is commonly used in data centers and high-performance computing environments where fast and reliable data transfer is essential.
RTXM500-400 400G QSFP-DD DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP-DD MSA, IEEE 802.3bs and 100G Lambda MSA.The optical transceiver is RoHS compliant.
Parameters
| Fiber Type | SMF |
| Connector | LC |
| Lasers and TIA | EML APD |
| Tx Power | 0.4 to 6.5 dBm |
| Rx Sensitivity | -29 to -15.1 dBm |
| Extinction Ratio | 6 dB |
| Power Consumption | <10 W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <12W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
Aligned with IEEE 802.3bs
4x100G PAM4 EML-based 1310nm transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface
MPO-12 receptacles
I2C management interface
RoHS compliant
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
