Product Details:
|
| Center Wavelength: | 1271/1291/1311/1331nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | 40Gb/s Line Speed, Full Duplex |
| Cable Type: | SMF | Cable Distance: | 40km |
| Connector: | Duplex LC Connector | Compliant: | CDRH Class 1 |
| Pull Color: | Black | ||
| Highlight: | 40G Transceivers,Single Fiber 40G Transceivers,QSFP+ Fiber Transceiver Module |
||
Brocade 57-1000327-01 FC SFP Transceiver 40G-QSFP-ER4 SMF Duplex LC 40km QSFP+ Optical Module
Brocade 40G ER4 10km FC SFP Transceiver Specification
The Brocade 57-1000327-01 is a high-performance, hot-pluggable transceiver module designed for use in 40 Gigabit Ethernet (GbE) networks. It is compliant with the QSFP+ MSA (Multi-Source Agreement) and IEEE 802.3ba standards, making it compatible with a wide range of networking equipment.
Key Features:
Supports 40GBASE-ER4 Ethernet standard
Single-mode fiber optic cable support
Four channels of 10Gb/s data transfer rate per channel
Hot-pluggable QSFP+ form factor
Digital diagnostics monitoring (DDM)
Compliant with QSFP+ MSA and IEEE 802.3ba standards
Ensure that the networking equipment is powered off before installing the transceiver module.
Verify that the transceiver module is compatible with your equipment.
Align the module with the corresponding slot on the equipment and gently push it into place.
Connect the LC duplex connector of the single-mode fiber optic cable to the transceiver module.
Power on the networking equipment.
Digital Diagnostics Monitoring (DDM):
The Brocade 57-1000327-01 transceiver module supports DDM, which provides real-time monitoring of several parameters such as transmitted power, received power, and temperature. This feature enables network administrators to quickly identify and troubleshoot issues, improving network performance and reliability.
Application
Brocade VDX 6740/VDX 6740T Switches
Brocade VDX 6940–144S/VDX 6940–36Q Series
Brocade 8770 Switches
Ordering Part Number
40G-QSFP-ER4
Parameters for the 40G ER4 10km FC SFP Transceiver Module:
| Performance | 40Gb/s line speed, full duplex |
| Media | Hot-pluggable, industry-standard QSFP, LC connector |
| Operating Parameters |
Transmit (Tx): • Wavelength: 1271/1291/1311/1331nmnm • 4 CWDM Lanes MUX/DEMUX design
Receive (Rx): • Wavelength: 1271/1291/1311/1331nmnm • Unstressed sensitivity: −6 dBm |
| Compliant | QDR/DDR Infiniband data rates |
| Certificate |
RoHS Compliant |
| Size |
Width: 18.35 mm (0.72 in.) Height: 13.25 mm (0.52 in.) Depth: 71.0 mm (2.79 in.) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
Safety Precautions:
Do not look directly into the fiber optic cable or the transceiver module.
Do not touch the optical connector of the transceiver module or the fiber optic cable.
Do not expose the transceiver module to excessive heat or moisture.
Use only approved single-mode fiber optic cables.
Conclusion:
The Brocade 57-1000327-01 40G-QSFP-ER4 transceiver module is a high-performance and reliable solution for 40 GbE networks. It offers a range of features such as DDM, hot-pluggable QSFP+ form factor, and compliance with industry standards. By following the installation instructions and safety precautions outlined in this manual, you can ensure the optimal performance and longevity of your equipment.

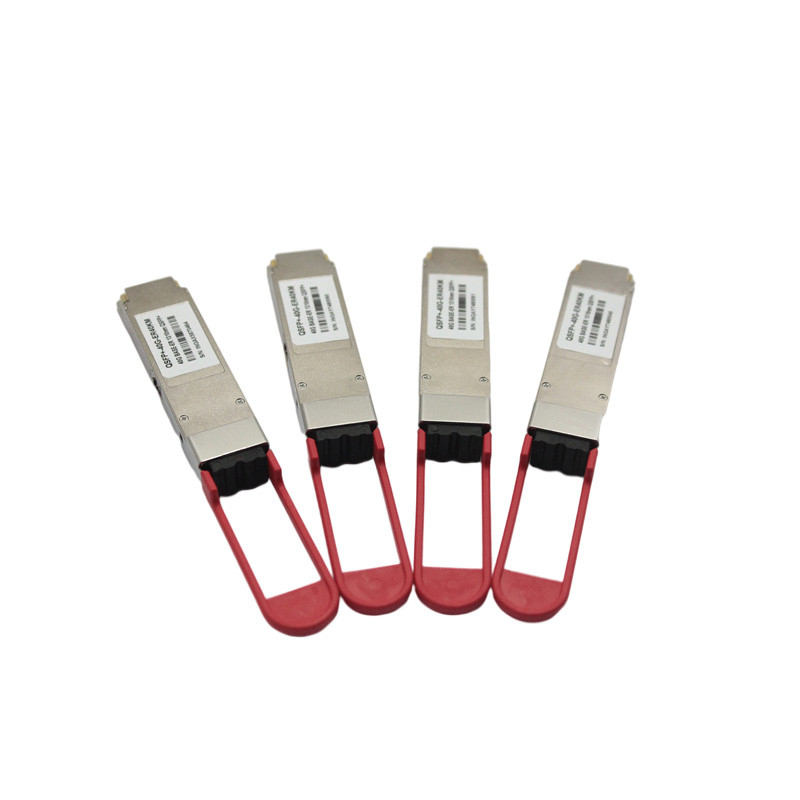

Photo for Brocade 40G ER4 10km FC SFP Transceiver
FAQ
Q1. Except for this Brocade 40G ER4 10km FC SFP Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
