Product Details:
|
| Data Rate: | 100G | Form-Factor: | QSFP28 |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 100m |
| Temperature: | 0-70 | Weight: | 0.27g |
| Warranty: | 1 Years | ||
| Highlight: | 100G QSFP28 Transceiver 100M,100G SWDM4 QSFP28 Transceiver,Finisar FTLC9152RGPL |
||

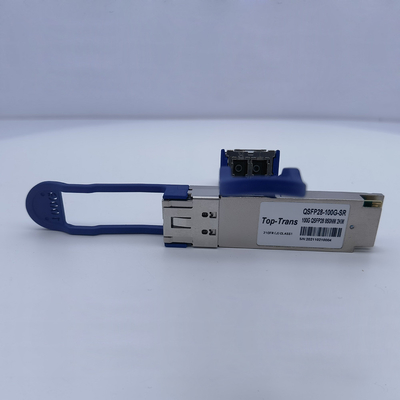

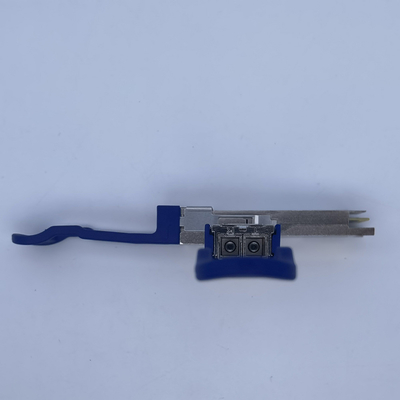

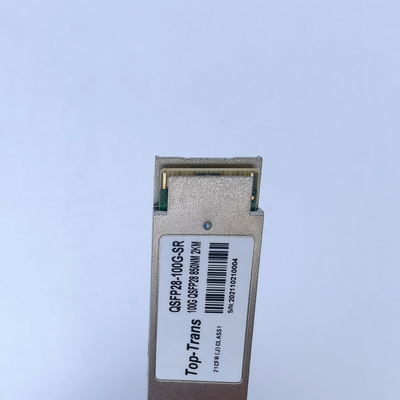

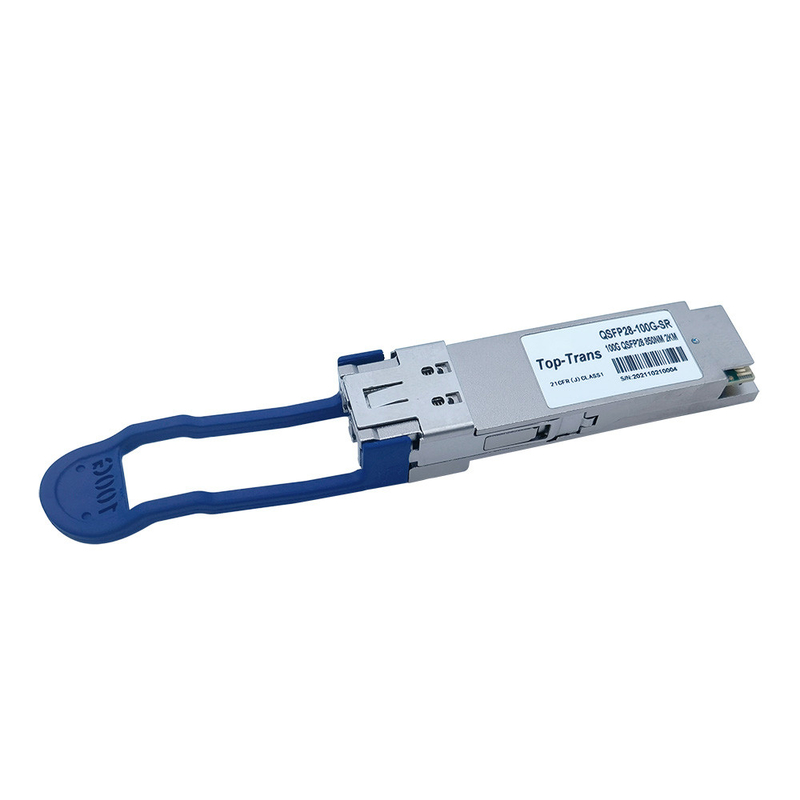

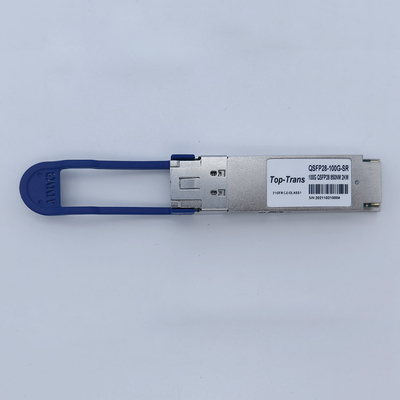

Finisar FTLC9152RGPL 100G QSFP28 SWDM4 850NM 100M Optical Module
Parameters
| Fiber Type |
10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -3 dBm |
| Rx Sensitivity | -9.4 dBm |
| Extinction Ratio | -8.2~-8.8 dbm |
| Power Consumption | 3.5W |
| Single Power Supply | 3.3~5 V |
Finisar’s FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA1 and IEEE 802.3bm CAUI-42 . Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA1 and Finisar Application Note AN21675 . The transceiver is RoHS-6 compliant per Directive 2011/65/EU3 , and Finisar Application Note AN-20384 .
PRODUCT FEATURES
APPLICATIONS
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
