Product Details:
|
| Form-Factor: | QSFP56 FR4 | Data Rate: | 200G |
|---|---|---|---|
| Center Wavelength: | CWDM | Transmission Distance: | 10km |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.06KG Per Piece | Warranty: | 3 Years |
| Highlight: | 200Gb/S Optical Transceiver Module,QSFP-DD Optical Transceiver Module,10km QSFP-DD Optical Transceiver |
||

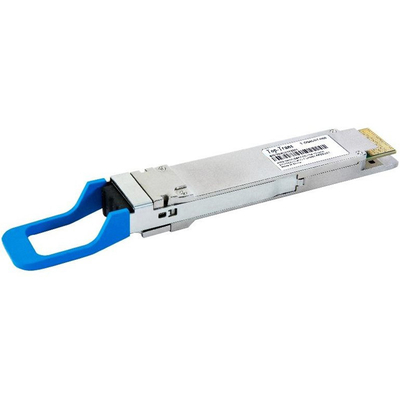

Original Compatible Finisar TQSFPDD-200G-LR4 QSFP-DD 200Gb/S LR4 10km Optical Transceiver Module
Parameters
| Fiber Type | SMF |
| Connector | LC |
| Lasers and TIA | EML APD |
| Tx Power | 0.4 to 6.5 dBm |
| Rx Sensitivity | -29 to -15.1 dBm |
| Extinction Ratio | 6 dB |
| Power Consumption | <6 W |
| Multi Power Supply | 3.3 V |
PRODUCT FEATURES
QSFP-DD 200G LR4 10km Optical Module
The QSFP-DD 200G LR4 10km optical module is a high-speed, high-performance transceiver designed for data center and telecommunications applications. It offers reliable, high-bandwidth connectivity over extended distances, making it ideal for demanding networking environments.
Key Features:
Data Rate: The QSFP-DD 200G LR4 module supports data rates of up to 200 Gigabits per second (Gbps), providing ultra-fast data transmission for high-bandwidth applications.
Form Factor: It utilizes the Quad Small Form-factor Pluggable Double Density (QSFP-DD) form factor, offering increased port density and scalability for modern network architectures.
Connectivity: Equipped with LC duplex connectors, ensuring seamless and reliable connections with single-mode fiber optic cables.
Transmission Distance: Designed for long-range transmission, with a typical reach of up to 10 kilometers (km) over single-mode fiber.
Wavelength: Utilizes four separate wavelengths in the C-band spectrum, enabling efficient data transmission and reception.
Forward Error Correction (FEC): Supports Forward Error Correction for enhanced data integrity and reliability, reducing transmission errors and ensuring accurate data delivery.
Digital Diagnostics (DDM): Incorporates Digital Diagnostics Monitoring functionality, allowing real-time monitoring of critical parameters such as optical power, temperature, and voltage for effective network management.
Applications:
Data Center Interconnects: Suitable for high-speed interconnects between data center switches, routers, and servers, enabling efficient data transfer in cloud computing environments and large-scale storage systems.
Telecommunications: Ideal for telecommunications networks requiring high-speed and reliable transmission for services such as high-definition video streaming, VoIP, and IoT connectivity.
Quality Assurance:
The QSFP-DD 200G LR4 10km optical module undergoes rigorous testing and quality assurance procedures to ensure compliance with industry standards and specifications. It is built to deliver reliable performance in demanding network environments.
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
